ZFIN Image: Fan et al., 2024, Fig. 4


Figure Caption

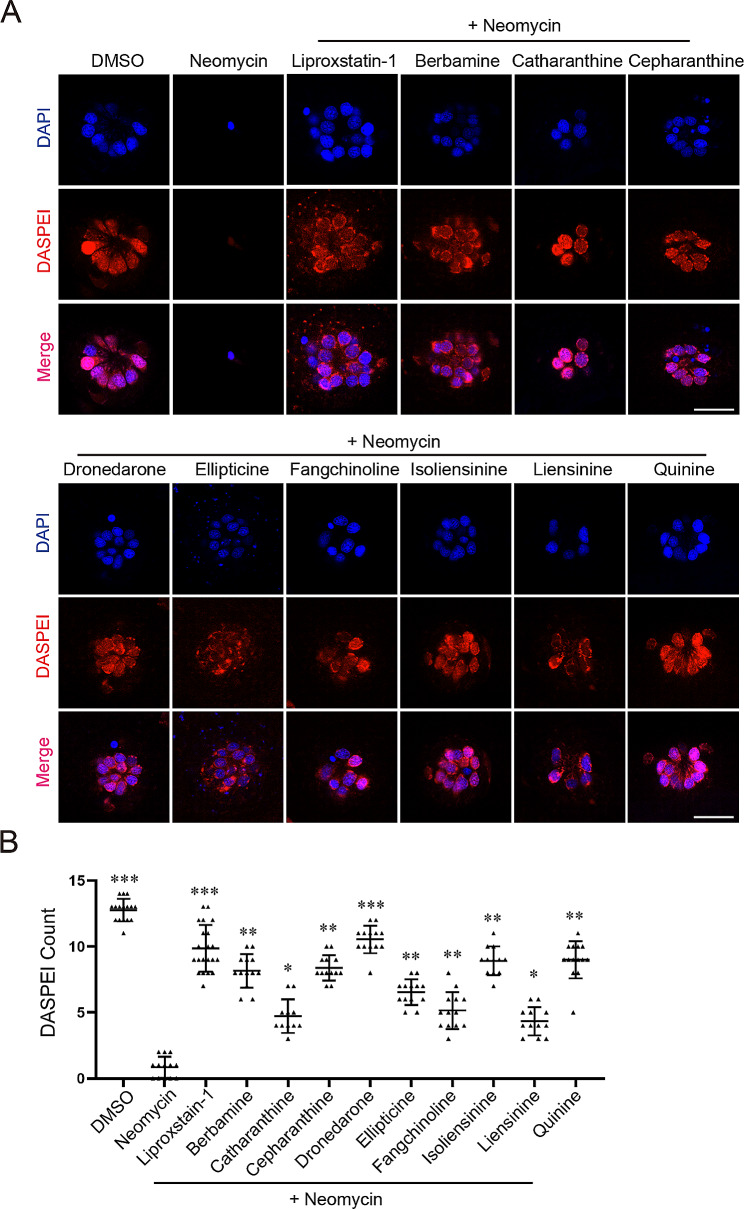

Fig. 4

Otoprotection screening against neomycin-induced hair cell damage in zebrafish lateral line. A Representative otoprotection results of the nine positive hit compounds identified from our screen. Liperoxstatin-1 is a positive control. Scale bar: 20 μm. (B) Quantitative results for (A). Three biological repeats were performed and at least 10 larvae were analyzed for each treatment. p-value is determined by ordinary one-way ANOVA with Dunnett’s multiple comparisons test. *, p < 0.05; **, p < 0.01; ***, p < 0.001
