Figure 6—figure supplement 1.

ID: ZDB-IMAGE-240603-106
Publication: Spikol et al., 2024 - Genetically defined nucleus incertus neurons differ in connectivity and function
All Figures: Figures for Spikol et al., 2024


Figure Caption

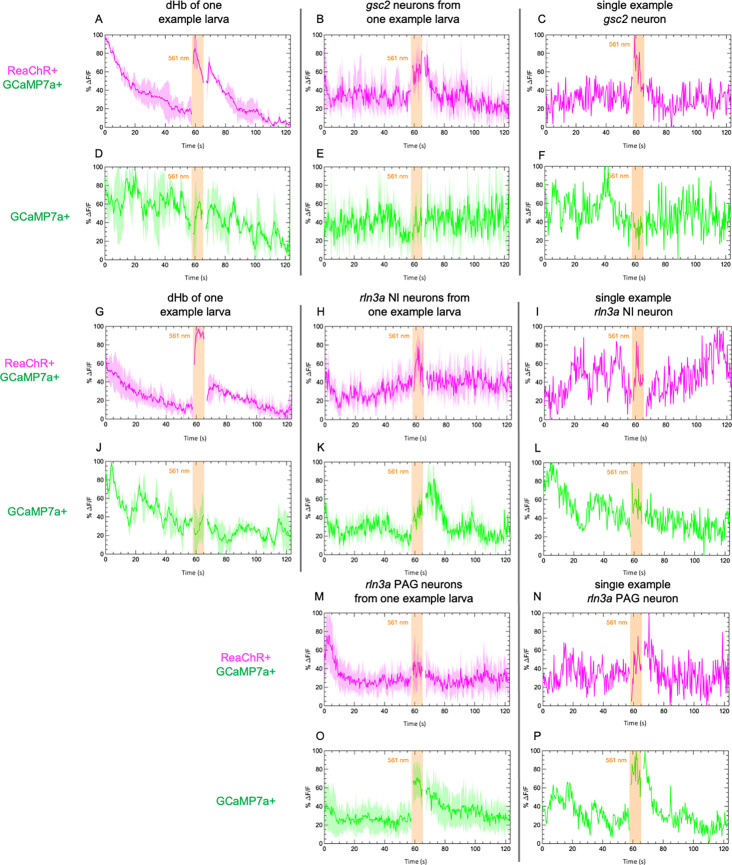

Figure 6—figure supplement 1. Calcium signaling in individual larvae and neurons.

Examples of calcium transients recorded from (A, B, D, E, G, H, J, K, M, O) individual larvae and from (C, F, I, L, N, P) single neurons in additional larvae. Calcium signaling was imaged at 2.6 Hz before, during, and after illumination with 561 nm light in 7 dpf larvae. GCaMP7a signaling (%ΔF/F) is shown for (A, D, G, J) the dorsal habenulae, (B, C, E, F) gsc2 neurons, (H, I, K, L) rln3a NI neurons, and (M, N, O, P) rln3a PAG neurons. Shading indicates standard deviation. Gaps at light onset and offset are due to latency in switching the laser configuration. (A–F) Tg(gsc2:QF2)^c721 or (G–P) Tg(rln3a:QF2, he1.1:YFP)^c836 driver lines together withTgBAC(gng8:GAL4FF)^c426; Tg(UAS:GCaMP7a)^zf415; Tg(QUAS:GCaMP7a)^c594 with (red trace) or without (green trace) Tg(UAS:ReaChR-RFP)^jf50.
