ZFIN Image: Xiao et al., 2024, Fig. 4


Figure Caption

Fig. 4

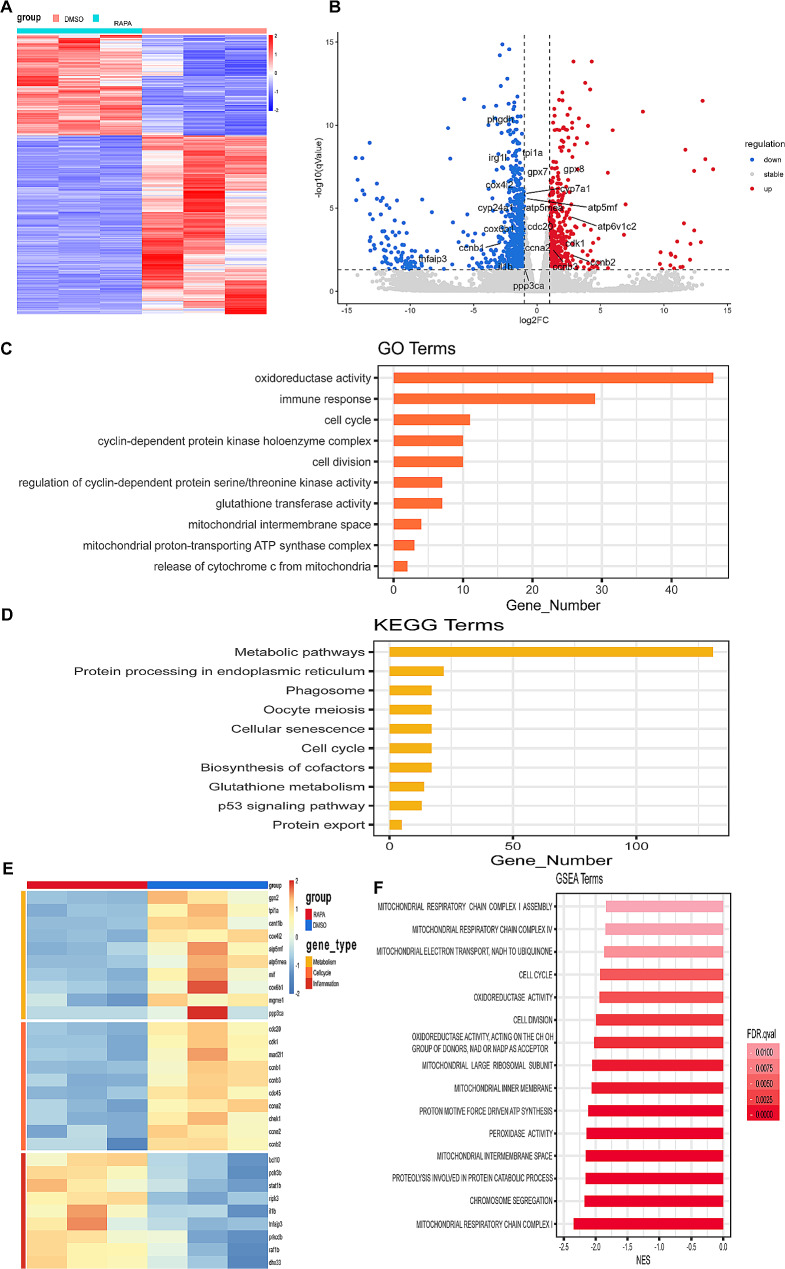

SMART-seq results of regenerated fins between mTOR-WT and rapamycin treated zebrafish larvae. (A) Heatmap of DEGs between mTOR-WT and rapamycin treated larval zebrafish tail fin. (B) Volcano map of DEGs between mTOR-WT and rapamycin treated larval zebrafish fin. (C) GO analysis of DEGs between the two groups. (D) KEGG pathway analysis of DEGs between the two groups. (E) Heatmap of metabolism, cell cycle and inflammation related genes between the two groups. (F) GSEA enrichment analysis of DEGs
