ZFIN Image: Peng et al., 2024, Figure 2


Figure Caption

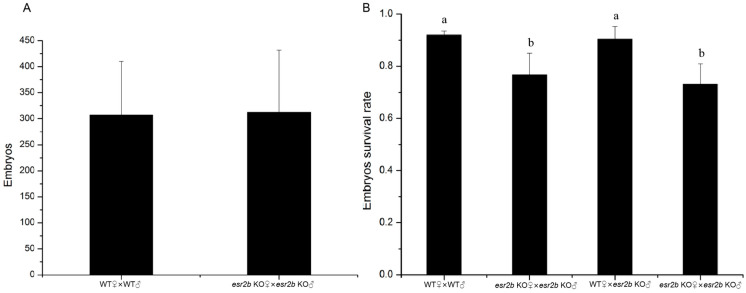

Figure 2

Comparison of fertility and survival rate between wild-type and esr2b knockout zebrafish. (A) The average number of embryos produced by wild-type and esr2b knockout homozygote zebrafish, (B) The survival rate of four kinds of embryos (wt♀ × wt♂, esr2b KO♀ × esr2b KO♂, wt♀ × esr2b KO♂, esr2b KO♀ × WT♂). Eight pairs from different zebrafish lines (8 male and 8 female) were selected for spawning. The results are presented as mean ± SEM values. Values accompanied by different letters are significantly different (ANOVA followed by Tukey’s test, p < 0.05).
