Figure 1

ID: ZDB-IMAGE-240527-136
Source: Figures for Peng et al., 2024


Figure Caption

Figure 1

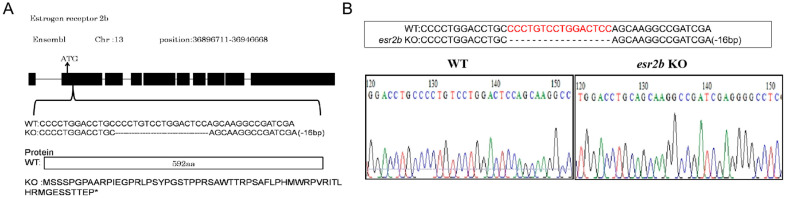

Genomic structure and targeted genetic modification of esr2b in zebrafish. (A) Gene structure of esr2b. Zebrafish esr2b contains 10 exons, with the translation initiation codon located on the second exon. Deletion of 16 nucleotides results in translation frameshift and early termination. * represent translation termination. Theoretically, the esr2b mRNA of knockout zebrafish only coding 60 amino acids. (B) Verified sequence change in esr2b knockout zebrafish.
