Figure 7

ID: ZDB-IMAGE-240429-42
Source: Figures for Xin et al., 2024


Figure Caption

Figure 7

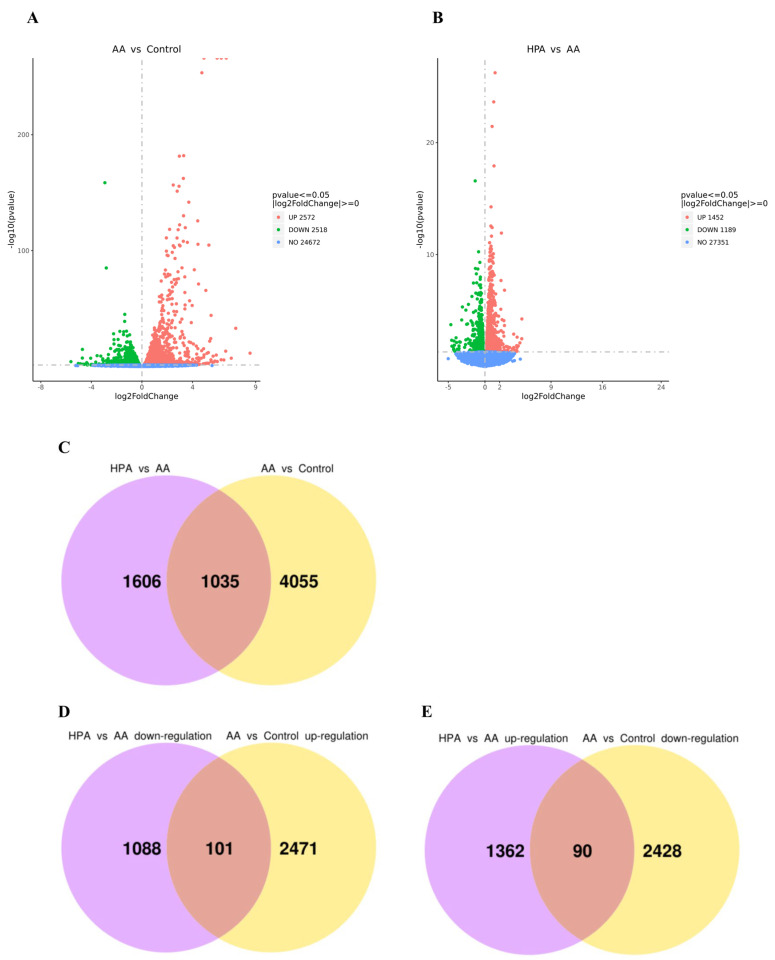

Differentially expressed genes (DEGs) in zebrafish. (A,B) Volcano plots for DEGs of AA vs. control and HPA vs. AA. (C) Venn plot for the DEGs of AA vs. control and HPA vs. AA. (D) Venn plot of the DEGs downregulated in the HPA group vs. the AA group and upregulated in the AA group vs. the control group. (E) Venn plot of the DEGs upregulated in the HPA group vs. the AA group and downregulated in the AA group vs. the control group.
