Figure 5

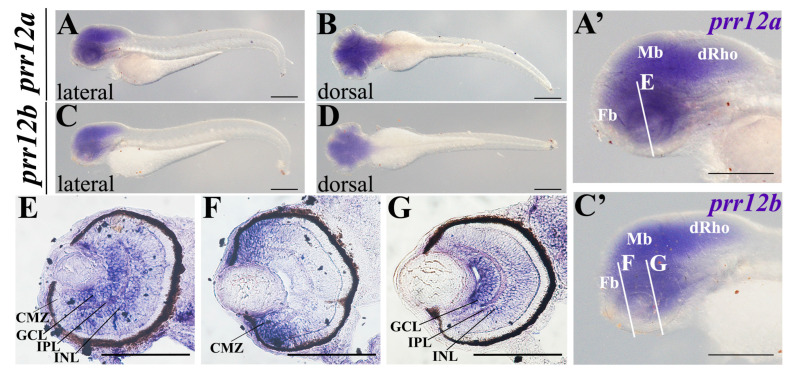

prr12a-201 and prr12b-201 territories converge in 72-hpf embryos. WISH (A–D,A’,C’) and ISH on cryosectioned larval heads (E–G). (A,C) lateral and (B,D) dorsal views of hybridized larvae. (A’,C’) enlargements of the heads of the embryos, respectively shown in (A,C). White lines indicate the section planes shown in (E–G). Scale bars in (A–D) and (A’–C’): 500 µm; Scale bars in (E): 250 µm. Abbreviations: CMZ: ciliary marginal zone; dRho: dorsal rhombencephalon; Fb: forebrain; GCL: ganglion cell layer; INL: inner nuclear layer; IPL: inner plexiform layer; Mb: midbrain.
