FIGURE 4

ID: ZDB-IMAGE-240417-31
Publication: Liu et al., 2024 - Plexin B3 guides axons to cross the midline in vivo
All Figures: Figures for Liu et al., 2024


Figure Caption

FIGURE 4

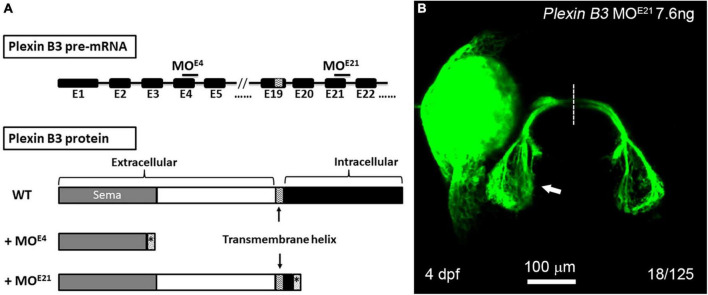

The intracellular domain of Plexin B3 is required for signaling transduction in retinal axon guidance. (A) Two morpholinos were designed to interfere with the splicing of exon 4 (E4) and exon 21 (E21) of Plexin B3 pre-mRNA. Sequencing the mis-spliced mRNA revealed that MO^E4 results in a truncated protein remaining only part of extracellular part and MO^E21 results in a truncated protein missing the majority of intracellular domains. (B) Plexin B3 MO^E21 treatment causing misprojection of retinal axons into the ipsilateral tectum (arrow), similar as the effect of MO^E4. The image is dorsal view, rostral to the top. Scale bar, 100 μm.
