Figure S5.

ID: ZDB-IMAGE-240315-100
Publication: Pozo-Morales et al., 2024 - Starvation-resistant cavefish reveal conserved mechanisms of starvation-induced hepatic lipotoxicity
All Figures: Figures for Pozo-Morales et al., 2024


Figure Caption

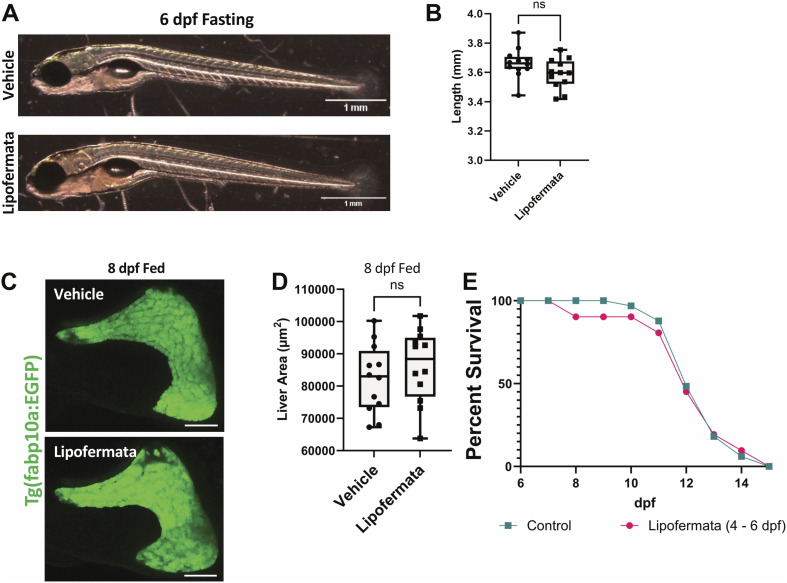

Figure S5. Lipofermata treatment does not impact animal growth, liver size in fed animals, or starvation resistance.

(A, B) Representative brightfield images (A) and quantification of body size (B) of 6 dpf zebrafish larvae treated with vehicle (0.01% DMSO) or 5 μM of lipofermata from 4 to 6 dpf without exogenous feeding. (C, D) MIP of the liver from Tg(fabp10a:EGFP) animals (C) and quantification of the liver area (D) of 8 dpf zebrafish larvae fed with rotifers from 5 dpf onward and treated with vehicle or lipofermata overnight from 6 to 8 dpf. ns, P > 0.05, t test. (E) Survival curves for zebrafish larvae treated with vehicle or lipofermata from 4 to 6 dpf without exogenous feeding.
