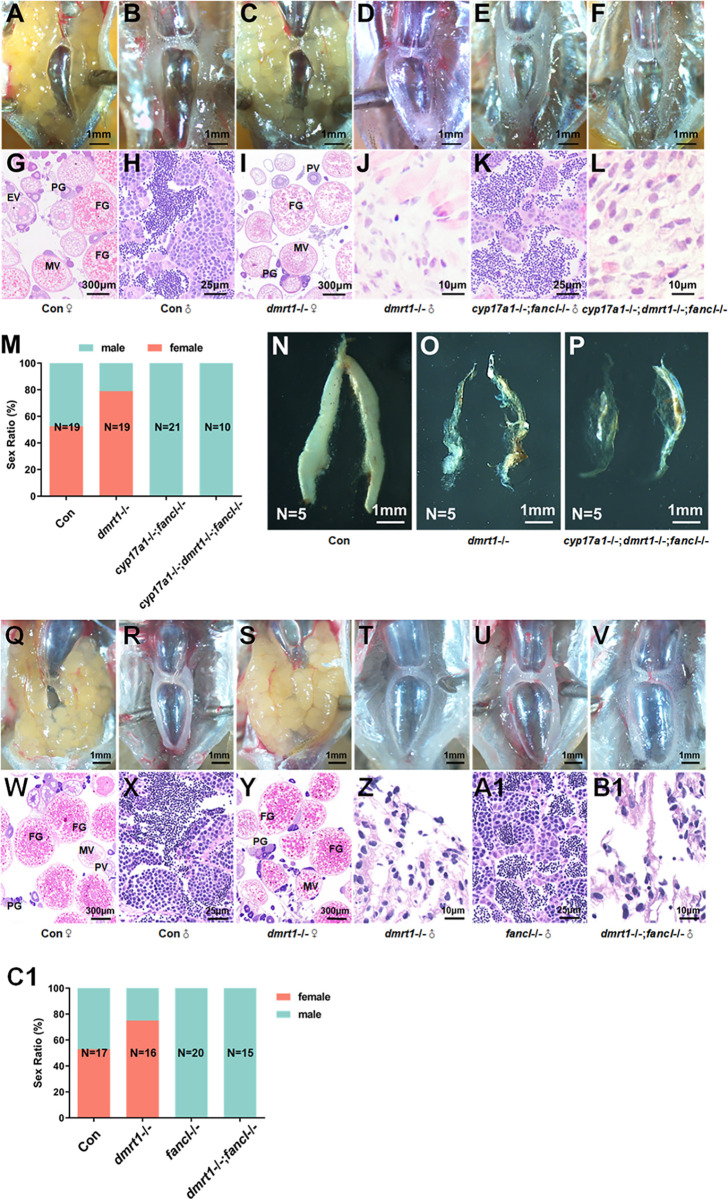

Fig 3 Additional depletion of fancl blocked female-biased sex ratio of cyp17a1-/-;dmrt1-/- fish and dmrt1-/- fish.

(A–F) Anatomical examination of the gonads from the control fish, dmrt1-/- fish, cyp17a1-/-;fancl-/- fish, and cyp17a1-/-;dmrt1-/-;fancl-/- fish. (G–L) Histological analysis of the gonads from the control fish, dmrt1-/- fish, cyp17a1-/-;fancl-/- fish and cyp17a1-/-;dmrt1-/-;fancl-/- fish. (M) Sex ratios in fish of each genotype mentioned above at 90 dpf. (N-P) The visualization of dissected testis of control fish, dmrt1-/- fish and cyp17a1-/-;dmrt1-/-;fancl-/- fish. (Q–V) Anatomical examination of the gonads from the control fish, dmrt1-/- fish, fancl-/- fish, and dmrt1-/-; fancl-/- fish. (W–B1) Histological analysis of the gonads from the control fish, dmrt1-/- fish, fancl-/- fish, and dmrt1-/-; fancl-/- fish. (C1) Sex ratios in fish of each genotype mentioned above at 90 dpf. PG, primary growth. PV, previtellogenic. EV, early vitellogenic. MV, middle vitellogenic. FG, full growth.
