Fig. 3
- ID
- ZDB-IMAGE-240305-6
- Publication
- Zorman et al., 2023 - The overview of development of novel bacterial topoisomerase inhibitors effective against multidrug-resistant bacteria in an academic environment: from early hits to in vivo active antibacterials
- All Figures
- Figures for Zorman et al., 2023
|
Figure Caption

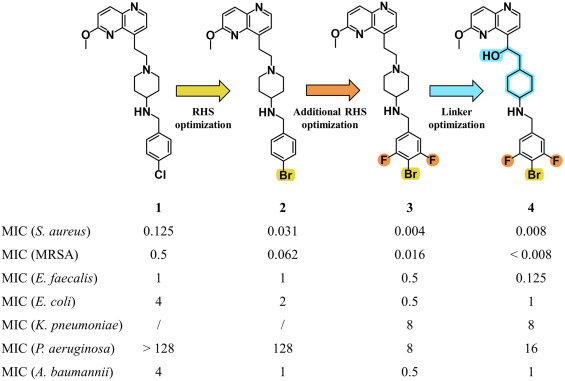

Fig. 3 Effect of NBTI structural optimizations on MIC values of different bacterial strains. The substitution of chlorine with bromine and additional fluorination of the phenyl RHS moiety increases the strength of symmetrical bifurcated halogen bonds and lowering the MIC values in all tested bacterial species (Kolarič et al., 2021; Kokot et al., 2021). Linker optimization does not have a big huge impact on MIC values, but drastically diminishes hERG inhibition (Kokot et al., 2022).
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Eur. J. Pharm. Sci.
