ZFIN Image: Wen et al., 2024, Figure 5


Figure Caption

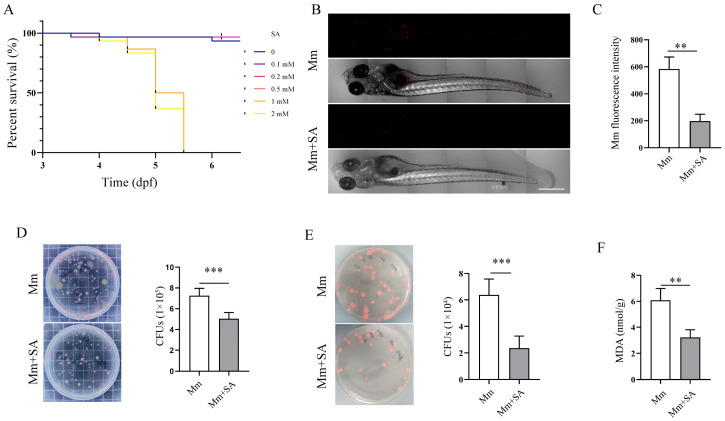

Figure 5

SA inhibits Mm proliferation and alleviates Mm-infection-induced oxidative stress in zebrafish. (A) The effects of different doses of SA on the survival of zebrafish larvae. (B) Imaging of Mm-infected zebrafish using laser scanning confocal microscope; the images are 10×; scale bar: 500 μm. (C) The statistics of B results. (n ≥ 6) (D) CFU assays analyzing the impact of 0.5 mM SA on the Mm load in zebrafish (n = 6). (E) CFU assays analyzing the effect of 0.5 mM SA on A549 cells after Mm infection. (F) The levels of MDA in the tissue homogenate of SA-treated and Mm-infected zebrafish (n = 3). Means ± SEM; ** p < 0.01 and *** p < 0.001.

Figure Data

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Microorganisms
