Figure 3

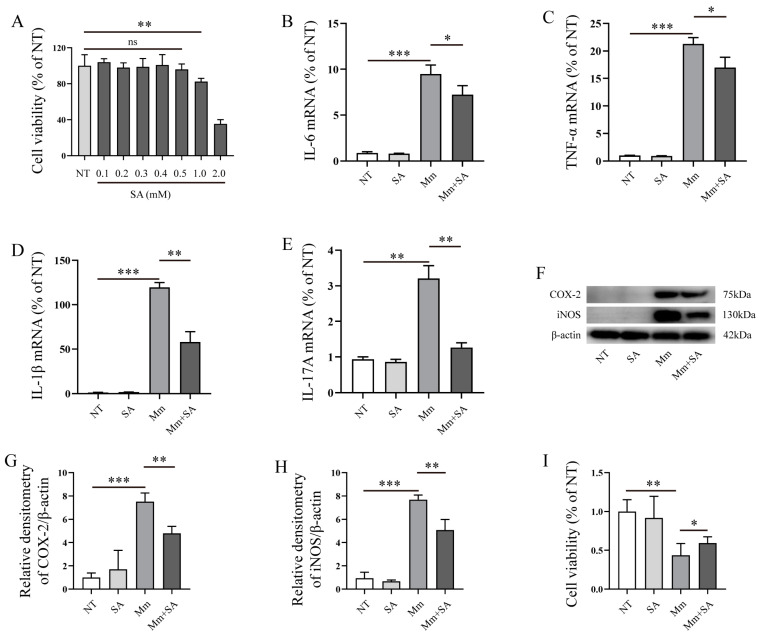

SA inhibits the inflammatory response induced by Mm infection. (A) The effect of different concentrations of SA on RAW264.7 cell viability; “no significance, ns” (n = 6). (B–E) qRT-PCR detection of the mRNA levels of IL-6, TNF-α, IL-1β, and IL-17A in RAW264.7 cells after Mm infection or the addition of 0.5 mM SA (n = 3). (F–H) Western blotting analysis of the effects of 0.5 mM SA on iNOS and COX-2 expression in macrophages after Mm infection (n = 3). (I) RAW264.7 cell viability, cells treated with Mm and 0.5 mM SA-pretreated Mm. Means ± SEM; * p < 0.05, ** p < 0.01, and *** p < 0.001.
