ZFIN Image: Zapilko et al., 2023, Figure 2


Figure Caption

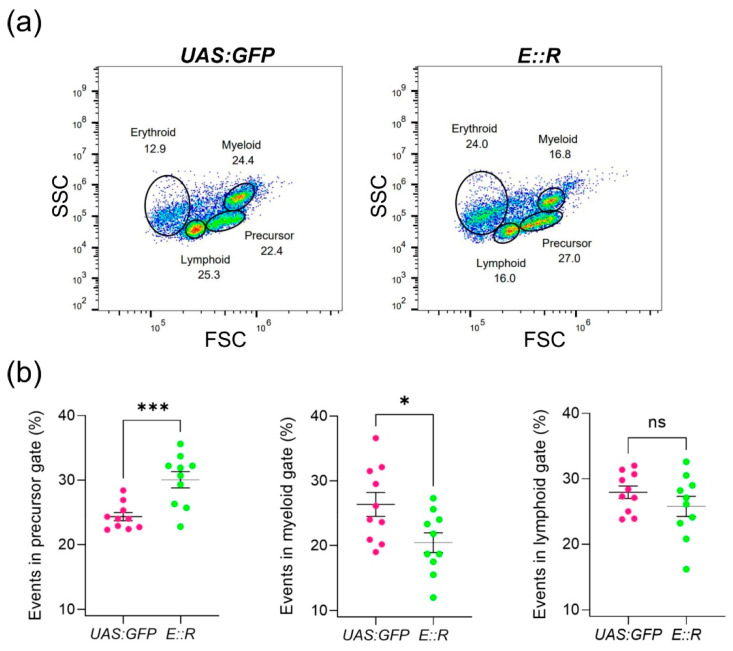

Figure 2

Flow cytometry analysis of major blood cell lineages in the whole kidney marrow of the ETV6::RUNX1 (E::R) zebrafish based on light scatter characteristics. (a) Flow cytometry plots representative of the UAS:GFP and E::R zebrafish lines are shown. (b) Scatter plots representing the percentage of cells in precursor, myeloid, and lymphoid fractions for the E::R (n = 10) and UAS:GFP zebrafish lines (n = 10). The statistical significance was represented as ‘ns’ for no statistical significance, * p < 0.05, and *** p < 0.001. All quantifications are presented as mean ± s.e.m.
