Figure 1—figure supplement 2.

ID: ZDB-IMAGE-240211-36
Source: Figures for Knabl et al., 2024


Figure Caption

Figure 1—figure supplement 2. Transcriptomic comparison of BMP2/4, GDF5-like, and control morphants and differential expression of pSMAD1/5 ChIP targets upon different knockdowns.

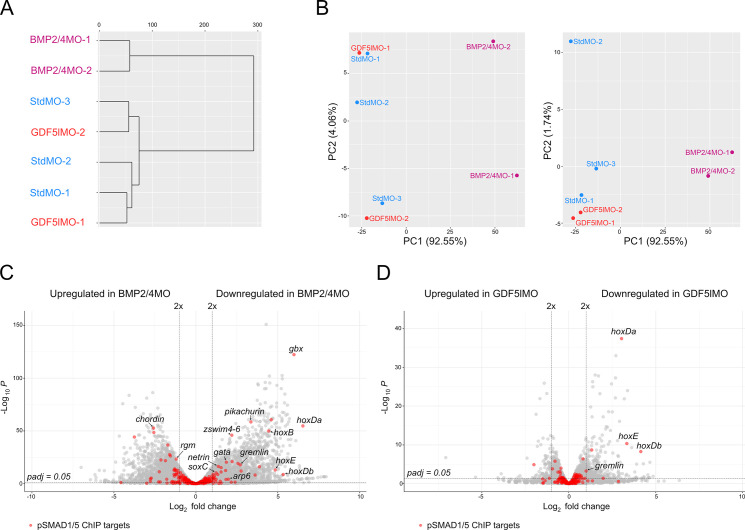

(A) In the cluster dendrogram and (B) principal component analysis, replicates of GDF5lMO (red) and StdMO (blue) transcriptomes group together, while the transcriptome of BMP2/4MO (magenta) is separated. (C, D) Volcano plots highlight differentially expressed pSMAD1/5 ChIP targets (red) in (C) BMP2/4 morphants and (D) GDF5-like morphants (p_adj≤0.05).
