Figure Caption

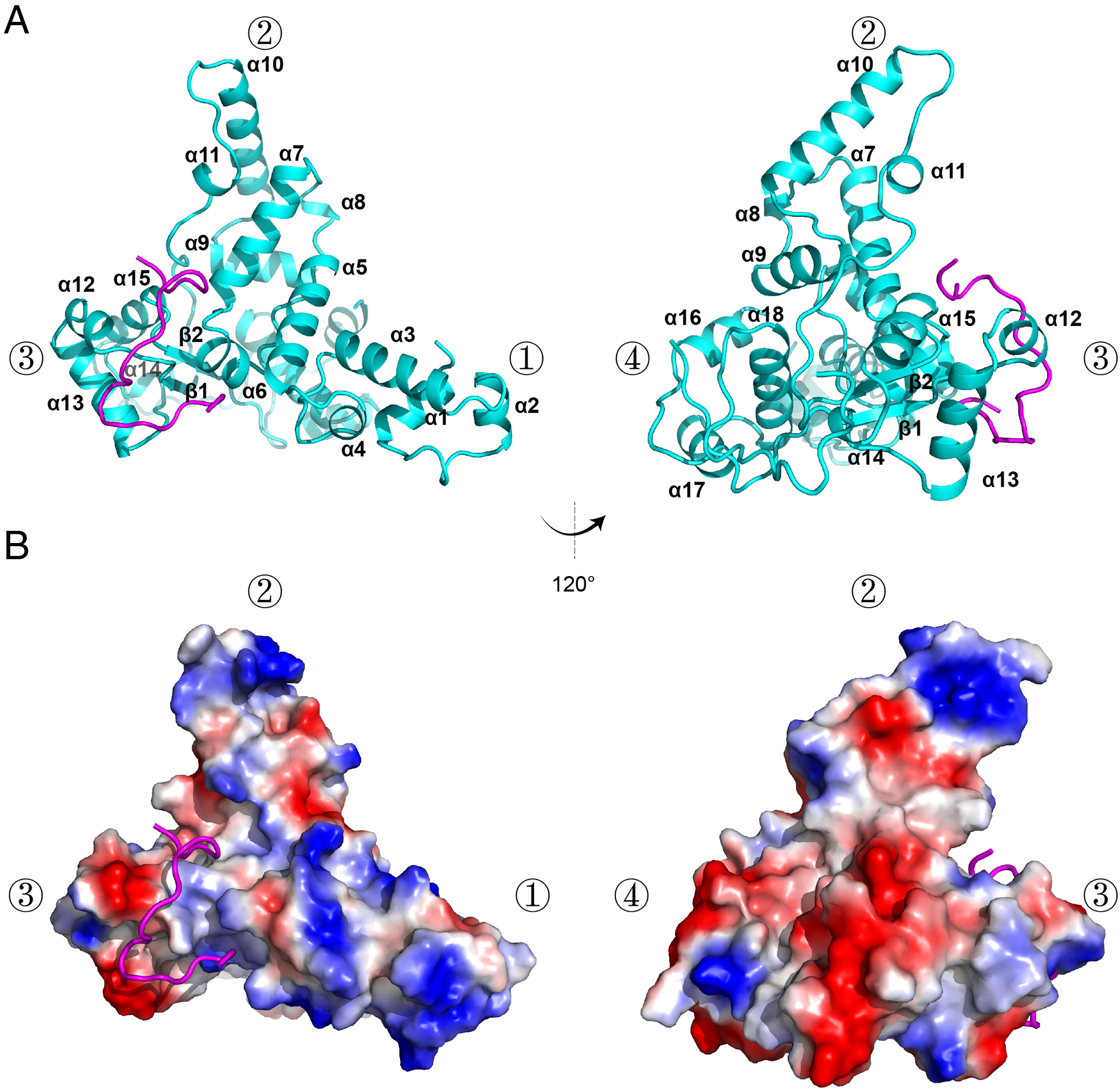

Fig. 2 Crystal structure of FAM91A1 in complex with TBC1D23. (A) Crystal structure of FAM91A1N in complex with the TBC1D23 fragment, shown in two orientations rotated 120° with respect to each other. Cyan: FAM91A1N; purple: TBC1D23 peptide. The four vertices of the triangular pyramid-like structure formed by FAM9A11-328 are indicated by ①, ②, ③, and ④, respectively. (B) Electrostatic potential surface of the complex of FAM91A1 with TBC1D23 peptide (ribbon diagram). Blue: positive potential; red: negative potential. The complex is shown in the same orientation as that of the above molecule in A.
