Fig. 5.

ID: ZDB-IMAGE-240123-1
Publication: Juan et al., 2024 - Control of cardiac contractions using Cre-lox and degron strategies in zebrafish
All Figures: Figures for Juan et al., 2024


Figure Caption

Fig. 5.

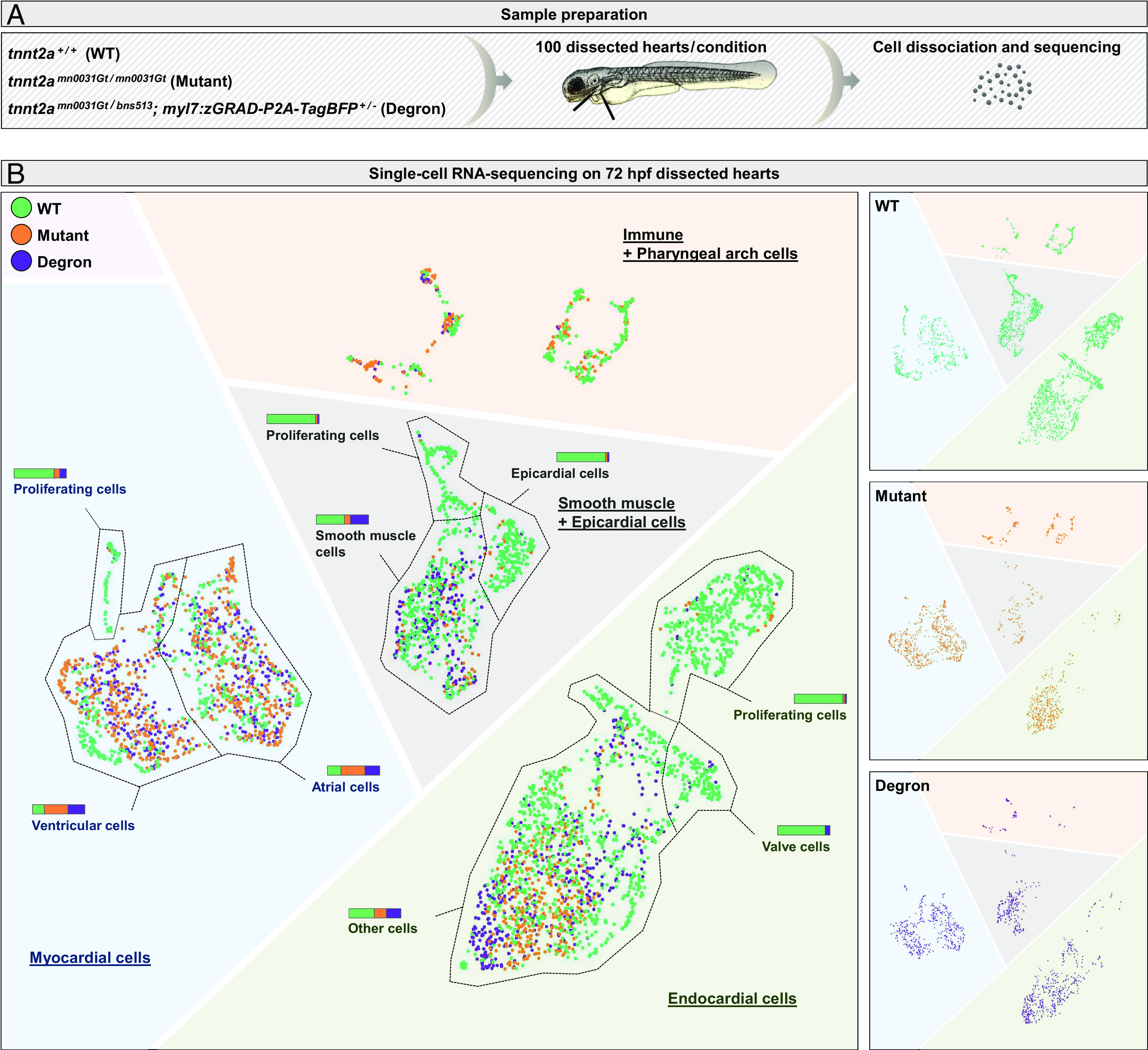

The cardiac transcriptomes of Tnnt2a degrons and tnnt2a mutants display high similarity at the single cell level. (A) Schematic and description of the sample preparation for single-cell RNA-sequencing; 100 hearts from 72 hpf WT, tnnt2a^{mn0031Gt/mn0031Gt} (Mutant), and tnnt2a^{mn0031Gt/bns513}; myl7:zGRAD-P2A-TagBFP^+/− (Degron) larvae were dissected, dissociated and the single cell suspension sequenced. (B) Uniform manifold approximation and projection (UMAP) representation of the data; stacked columns represent the numbers of WT (green), mutant (orange), and degron (violet) cells for each annotated population; UMAP is displayed merged (Left) or split by genotype (Right).
