ZFIN Image: Guo et al., 2024, Fig. 1


Figure Caption

Fig. 1

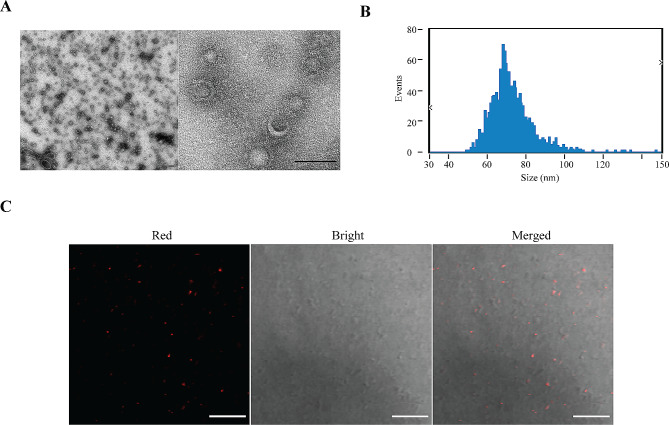

Characterization of P. gingivalis outer membrane vesicles (OMVs). (A) Transmission electron microscope (TEM) micrographs showing P. gingivalis OMVs. Electron microscopy imaging at 100 kv. Scale bar: 100 nm. (B) Size characteristics of P. gingivalis OMVs with a nanoparticle size analyzer (NSA). The dilution factor is 1000. The average diameter of P. gingivalis OMVs was about 72.28 nm with a concentration of 8.19 × 10¹⁰ particles/mL. (C) Confocal imaging results of P. gingivalis OMVs under 63x oil lens. Red, P. gingivalis OMVs labeled with PKH26. Scale bar: 10 μm
