ZFIN Image: Roodsant et al., 2023, Fig 1


Figure Caption

Fig 1

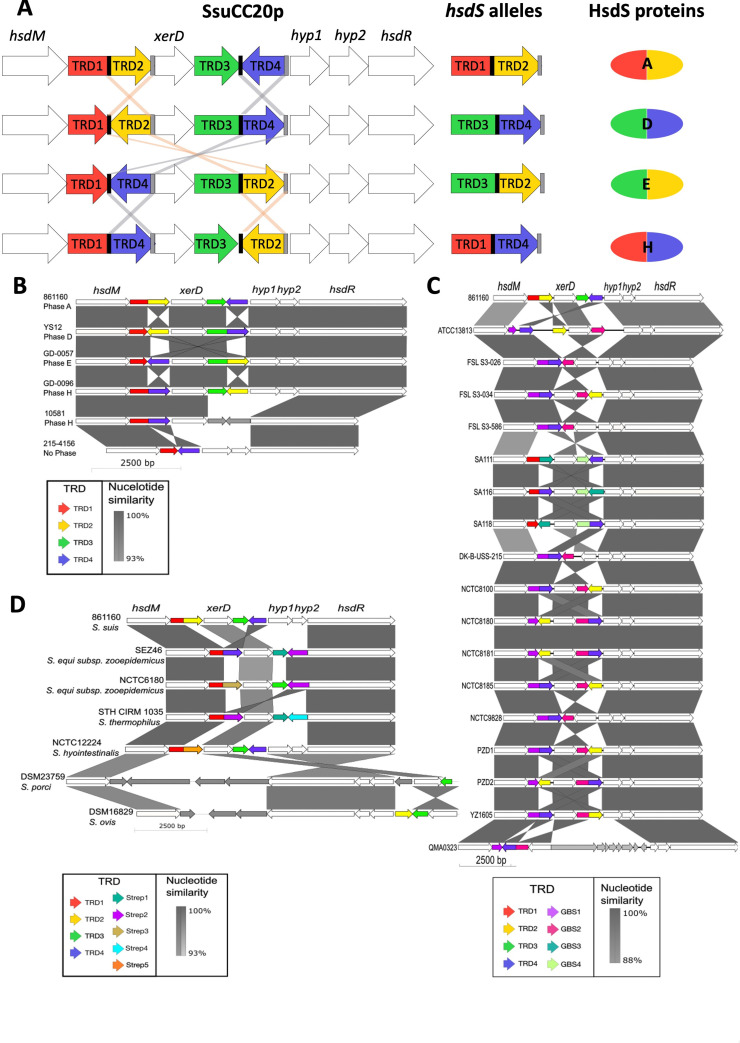

SsuCC20p presence in S. suis and other streptococci. (A) Graphical representation of SsuCC20p. The black bars represent two identical left inverted repeats (TAAATCATCATTTA), and the gray bars (TAAATGATGATTTA) represent two identical right inverted repeats. Target recognition domains (TRDs) are numbered 1 to 4. Gray and orange lines indicate observed recombination events. (B) Visualization of unique tblastn hits for SsuCC20p presence in S. suis, (C) S. agalactiae, or (D) other streptococcal species genomes visualized with easyfig. Unique TRDs that are not found in S. suis are named GBS1–4 for TRDs found in S. agalactiae and Strep1–5 for TRDs found in other streptococcal species.
