Figure 3

ID: ZDB-IMAGE-240113-16
Publication: Madera et al., 2023 - Gene Characterization of Nocturnin Paralogues in Goldfish: Full Coding Sequences, Structure, Phylogeny and Tissue Expression
All Figures: Figures for Madera et al., 2023


Figure Caption

Figure 3

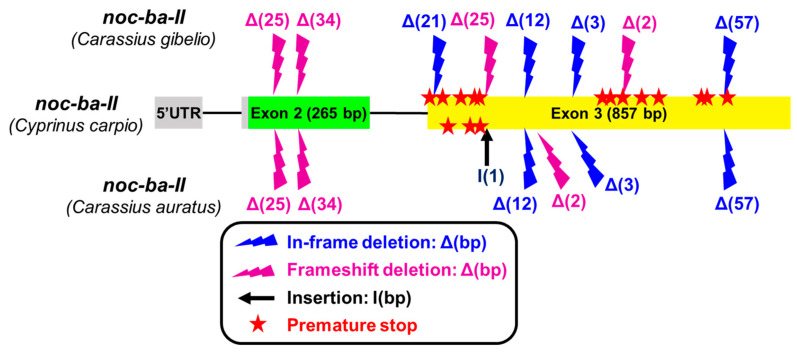

Mutations accumulated in the noc-ba paralogue of Carassius gibelio (Gene ID: 127988217) and Carassius auratus (Gene ID: 113105808) compared to Cyprinus carpio (accession no. XM_019094354.2). Illustration represents the exon–intron structure of the splicing variant II of noc-ba. Exons are indicated by boxes and introns by lines. The symbols above (C. gibelio) and below (C. auratus) indicate the mutations compared to C. carpio sequence. The blue and purple rays represent in-frame and frameshift deletions, respectively, and the base pairs suppressed, Δ(bp). The black arrow I(1) indicates an insertion of 1 bp. The red stars represent premature stop codons in transcribed sequence.
