Figure 4

ID: ZDB-IMAGE-240112-45
Publication: Raman et al., 2023 - A Zebrafish Mutant in the Extracellular Matrix Protein Gene efemp1 as a Model for Spinal Osteoarthritis
All Figures: Figures for Raman et al., 2023


Figure Caption

Figure 4

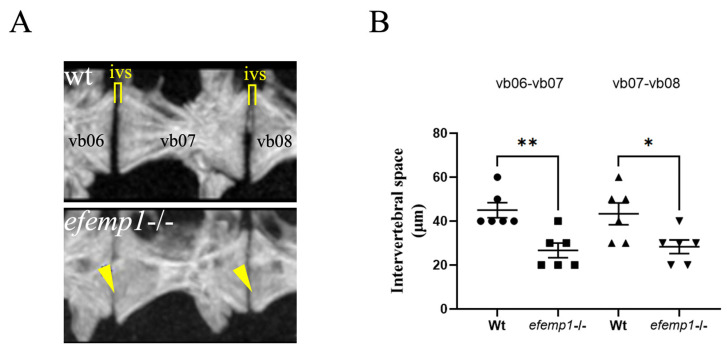

Reduced intervertebral disk space and bone spurs observed in the spine of efemp1−/− adult zebrafish. (A) Closeup view of pre-caudal vertebrae 6–8 (L to R) for wt and efemp1−/−, clearly showing reduced intervertebral disk space and bone spurs, indicated by yellow bar and arrowheads, respectively. (B) Intervertebral disk space calculated between vb06-vb07 and vb07-vb08 (n = 6 fish/group), revealing significant reduction of the intervertebral disk space in the efemp1−/− zebrafish adults. The values are expressed as mean ± SEM, significance: * p < 0.05, ** p < 0.01, as determined by ordinary one-way ANOVA test.

Figure Data

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Animals (Basel)
