Figure Caption

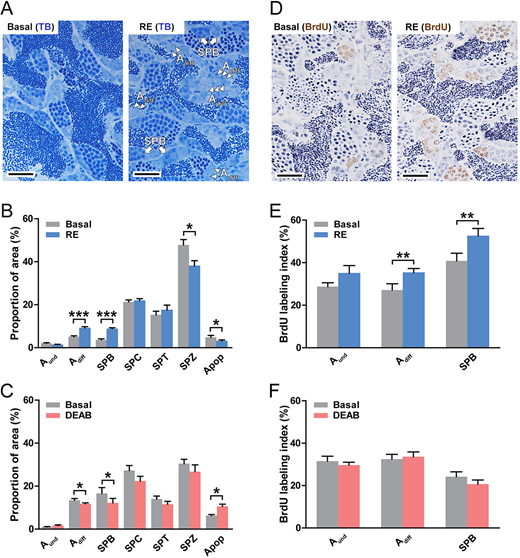

Fig. 2 Retinoid effects on spermatogonial development. (A-F) Evaluation of the proportions of different germ cells (A-C) and of the proliferation activity of spermatogonia (D-F) in testes cultured for 4 days under different experimental conditions: in the absence or presence of retinol (RE, 10 µM; A,B and D,E), and in the absence or presence of DEAB (10 µM; C,F). Adiff are indicated by arrowheads, SPB by arrows in A; Apop, apoptotic cells. Data are mean±s.e.m. (n=6; *P<0.05, **P<0.01, ***P<0.001). Scale bars: 25 µm.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Development
