Figure 2.

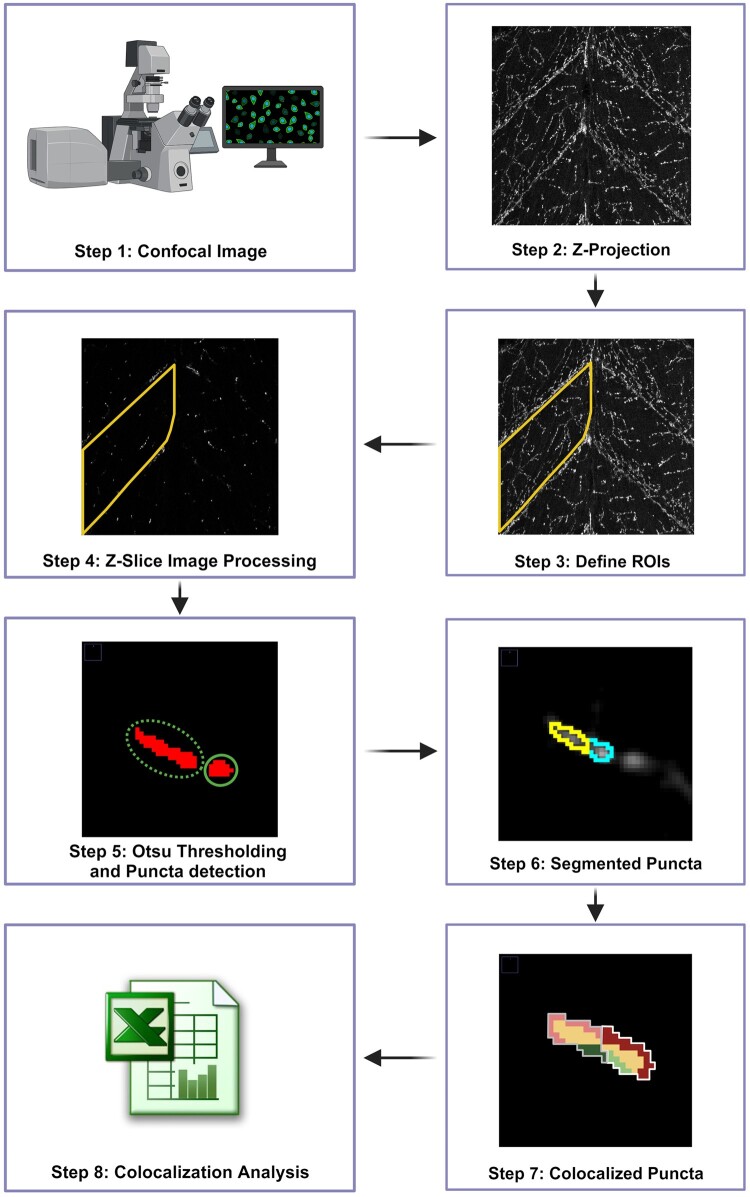

NMJ analysis workflow overview (Steps 1–7). Z-projection are created of the confocal images where users are prompted to define the ROIs. Each z-slice is processed for contrast enhancement and punctum detection via Otsu thresholding. Clustered puncta are segmented into single punctum and co-localization analysis is performed for each punctum in the defined ROI.
