Figure Caption

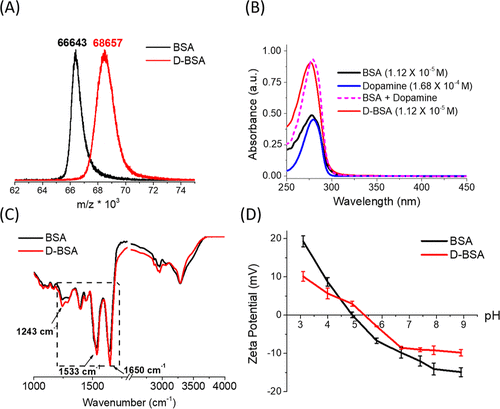

Fig. 2 (A) MALDI-TOF mass spectra of BSA (black) and dopamine-conjugated BSA (D-BSA) (red) proteins. (B) UV–vis absorption spectra of 1.12 × 10–5 M BSA (black), 1.68 × 10–4 M dopamine (blue), sum of BSA and dopamine (×15 mol) spectra (pink), and 1.12 × 10–5 M D-BSA (red). Dopamine concentration is 15 times that of BSA. (C) ATR-FTIR spectra of BSA (black) and D-BSA (red). (D) Zeta potentials of BSA (black) and D-BSA (red) aqueous solutions at different pH values from 3.0 to 9.0.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Biomacromolecules
