Figure 6

ID: ZDB-IMAGE-231127-93
Publication: Deng et al., 2023 - Dynamic Regulation of brsk2 in the Social and Motor Development of Zebrafish: A Developmental Behavior Analysis
All Figures: Figures for Deng et al., 2023


Figure Caption

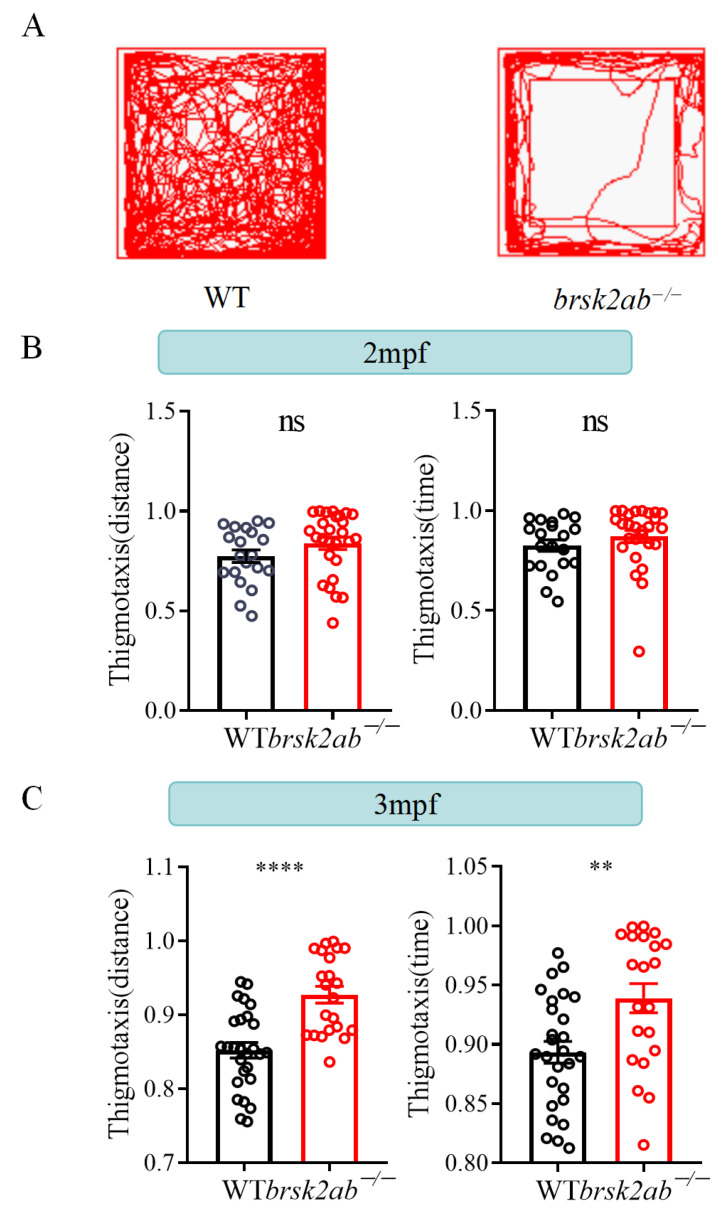

Figure 6

brsk2ab^−/− zebrafish displayed escalating anxiety-like behaviors. (A) The analytical paradigm showed that the open field tank was divided into two equal zones, and the thigmotaxis was calculated using the time and distance ratio that fish spent in the peripheral zone. (B) There was no significant difference in the thigmotaxis index between WT and brska2b⁻^/⁻ zebrafish at 2 mpf (WT vs. brsk2ab^−/−, n = 20: 27, distance: 0.7737 ± 0.14 vs. 0.8376 ± 0.16, p = 0.1622; time: 0.8245 ± 0.13 vs. 0.8712 ± 0.15, p = 0.2225). (C) The thigmotaxis of brsk2ab^−/− zebrafish was observed to have increased more than that of WT zebrafish at 3 mpf (WT vs. brsk2ab^−/−, n = 27: 22, distance: 0.8522 ± 0.05 vs. 0.9274 ± 0.05, p < 0.0001; time: 0.8934 ± 0.05 vs. 0.9389 ± 0.06, p = 0.0038). Data are shown as mean ± SEM s, ** p < 0.01, **** p < 0.0001.

Figure Data

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Int. J. Mol. Sci.
