Figure 3

ID: ZDB-IMAGE-231127-90
Publication: Deng et al., 2023 - Dynamic Regulation of brsk2 in the Social and Motor Development of Zebrafish: A Developmental Behavior Analysis
All Figures: Figures for Deng et al., 2023


Figure Caption

Figure 3

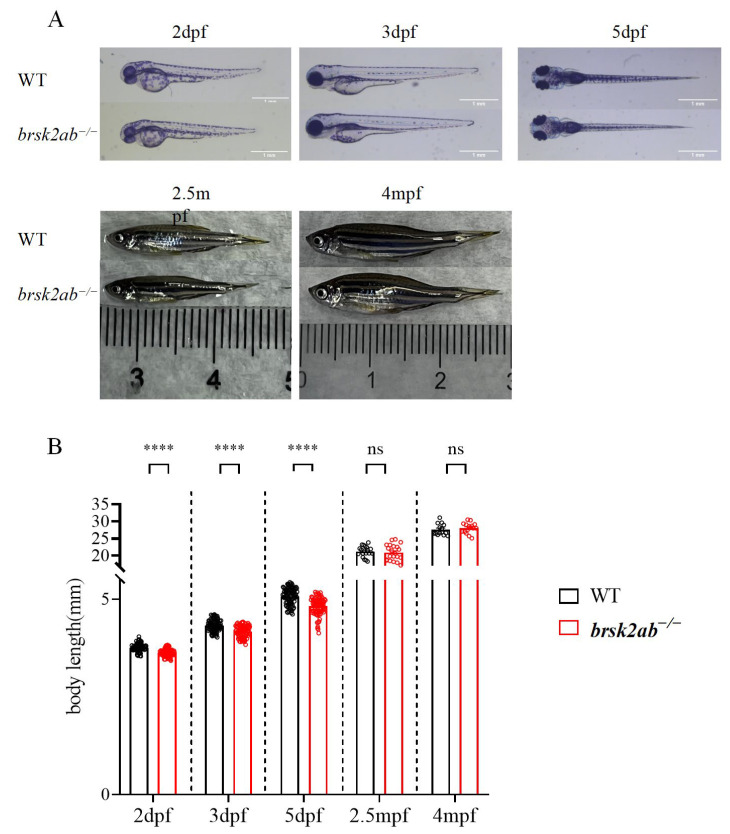

brsk2ab^−/− zebrafish showed a catch-up growth pattern. (A) Representative pictures of measured zebrafish. (B) The body lengths were measured at 2 dpf (WT: brsk2ab^−/−, n = 120: 131), 3 dpf (n = 105: 105), 5 dpf (n = 100: 89), 2.5 mpf (n = 19: 21), and 4 mpf (n = 14: 16). The brsk2ab^−/− larvae have shorter bodies than WT larvae at 2 dpf (WT vs. brsk2ab^−/−, 3.760 ± 0.09 vs. 3.623 ± 0.09; p < 0.0001), 3 dpf (4.329 ± 0.14 vs. 4.170 ± 0.15; p < 0.0001), and 5 dpf (5.071 ± 0.21 vs. 4.819 ± 0.22; p < 0.0001), but there was no difference in body length at 2.5 mpf (21.19 ± 1.58 vs. 20.90 ± 2.31; p = 0.646) and 4 mpf (27.57 ± 1.66 vs. 28.04 ± 1.53; p = 0.425). Data are shown as mean ± SEM, **** p < 0.0001.

Figure Data

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Int. J. Mol. Sci.
