Figure 6

ID: ZDB-IMAGE-231030-124
Publication: Huttner et al., 2023 - Loss of Sec-1 Family Domain-Containing 1 (scfd1) Causes Severe Cardiac Defects and Endoplasmic Reticulum Stress in Zebrafish
All Figures: Figures for Huttner et al., 2023


Figure Caption

Figure 6

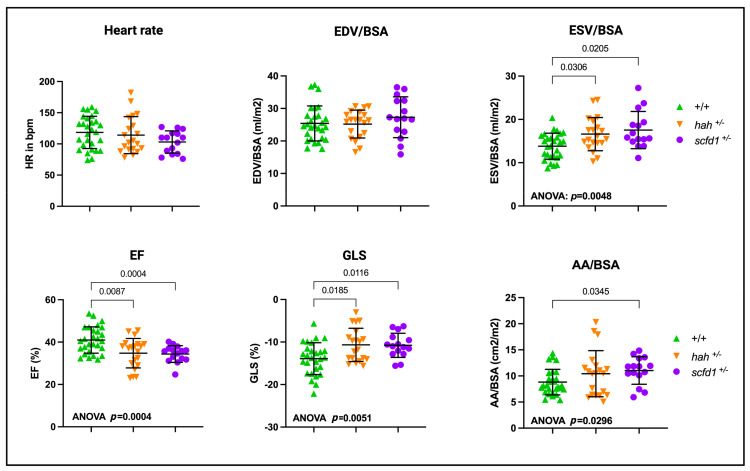

scfd1 deficiency leads to systolic dysfunction in adult zebrafish hearts. Scatter graphs showing high-frequency echocardiography data from heterozygous hah^vcc43+/− and scfd1^vcc44+/− mutants aged 9–15 months. Heart rate and ventricle end-diastolic volume (EDV), normalized to body surface area, (BSA) were normal, while ventricle end-systolic volume (ESV), normalized to BSA, was increased. Ventricular ejection fraction (EF) and global longitudinal strain (GLS) were reduced in hah^vcc43+/− and scfd1^vcc44+/− mutants in comparison to wildtype (+/+). Maximal atrial area (AA) was increased in scfd1^vcc44+/− mutants. Significant one-way ANOVA and multiple comparisons p-values stated. Significance if p < 0.05. Created with BioRender.com.
