Figure Caption
Fig. 22

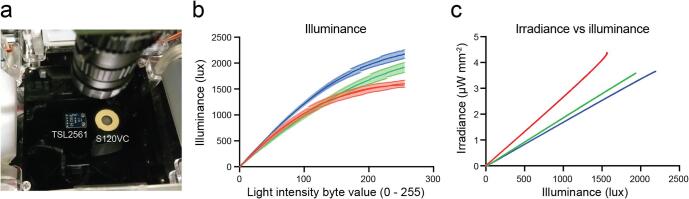

Technical characterisation of the optogenetic module. a. Irradiance characterization setup, the TSL2561 luminosity sensor (left) and the Thorlabs S120VC (Right) on the calibration arena. b. Illuminance functions obtained with two TSL2561 modules (Error bars correspond to the standard deviation). c. The calibration functions obtained comparing illuminance and irradiance functions red (633 nm), green (521 nm) and blue (465 nm) lights. (For interpretation of the references to colour in this figure legend, the reader is referred to the web version of this article.)
