Figure Caption
Fig. 13

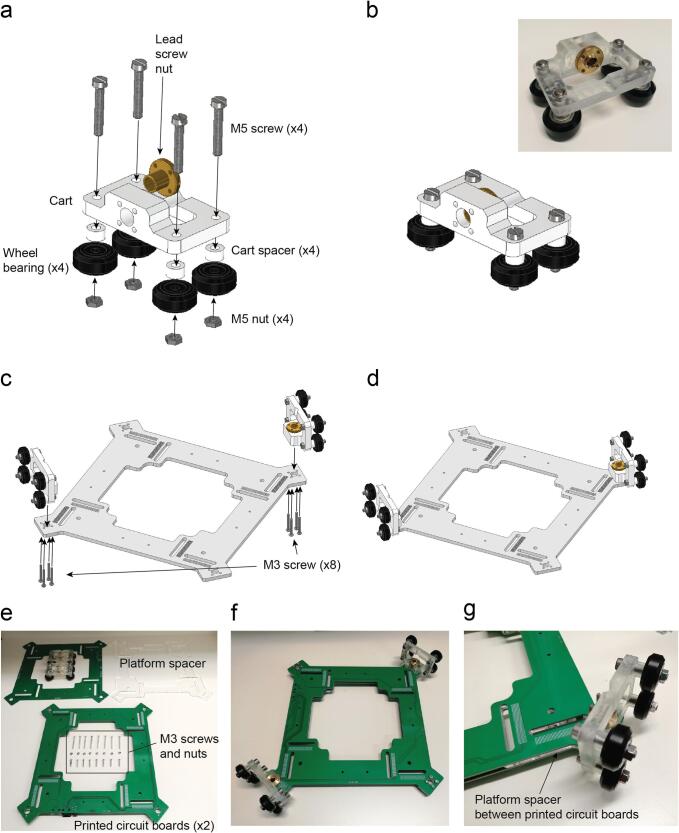

Cart assembly. a. Exploded view. b. Assembled view (Supplementary video 9). Platform assembly. c. Exploded view of the platform assembly. d. Platform assembled with both carts (Supplementary video 10). e. Materials needed to assemble the carts and the platform, Long M3 screws (40 mm) are needed to hold the nut in place. f. Assembled platform with two carts. g. Detail of the platform spacer laser cut in PMMA between two printed circuit boards.
