ZFIN Image: Leid et al., 2023, Fig. 5.


Figure Caption

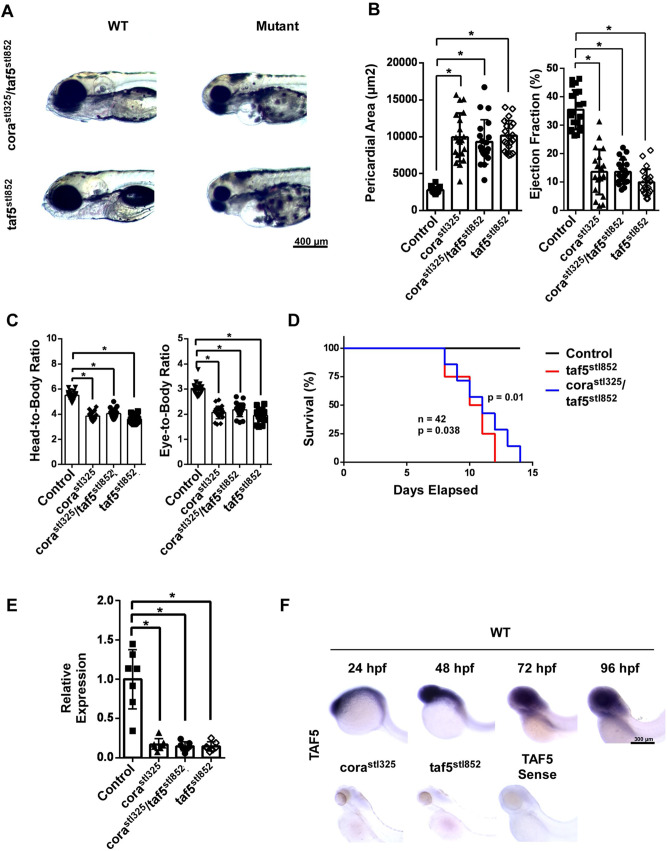

Fig. 5.

cora^stl325 is a null allele of taf5. (A) Brightfield images of control, cora^stl325, taf5^stl852, and cora^stl325/ taf5^stl852 embryos at 96 hpf. (B) Measurement of pericardial area and ejection fraction in control, cora^stl325, taf5^stl852, and cora^stl325/ taf5^stl852 embryos at 96 hpf. n=22. (C) Measurement of head-to-body and head-to-eye ratios in control, cora^stl325, taf5^stl852, and cora^stl325/ taf5^stl852 embryos at 96 hpf. n=22. (D) Survival of control, taf5^stl852, and cora^stl325/taf5 CRISPR embryos. n=42. (E) RTPCR for taf5 mRNA in control, cora^stl325, taf5^stl852, and cora^stl325/ taf5^stl852 embryos at 96 hpf. n=7. (F) Time course of taf5 mRNA expression by whole-mount in situ hybridization (top) and taf5 mRNA expression in cora^stl325 and taf5^stl852 embryos at 96 hpf. Note: all brackets marked with ‘*’ represent P<1E-4.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Biol. Open
