Figure 10

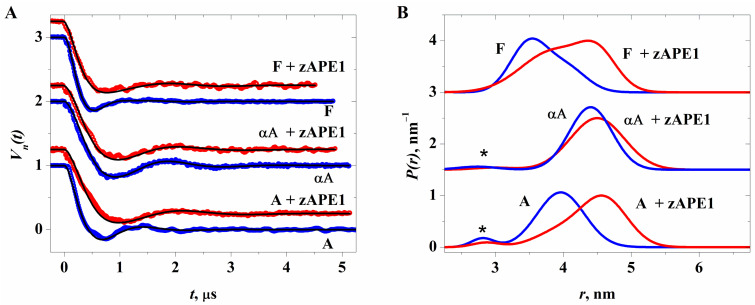

(A) Normalized three-pulse DEER time traces (circles, noisy lines) and their best fits (smooth lines) obtained by multi-Gaussian Monte Carlo simulations. The curves are shifted upwards for clarity. (B) The distance distribution functions P(r) derived for DNA duplexes without zAPE1 (blue curves) and with zAPE1 (red curves). The asterisks mark artefact peaks near 2.8 nm (see the main text).
