Figure 2

ID: ZDB-IMAGE-230709-10
Publication: Hoareau et al., 2023 - Characterization of the Zebrafish Elastin a (elna^sa12235) Mutant: A New Model of Elastinopathy Leading to Heart Valve Defects
All Figures: Figures for Hoareau et al., 2023


Figure Caption

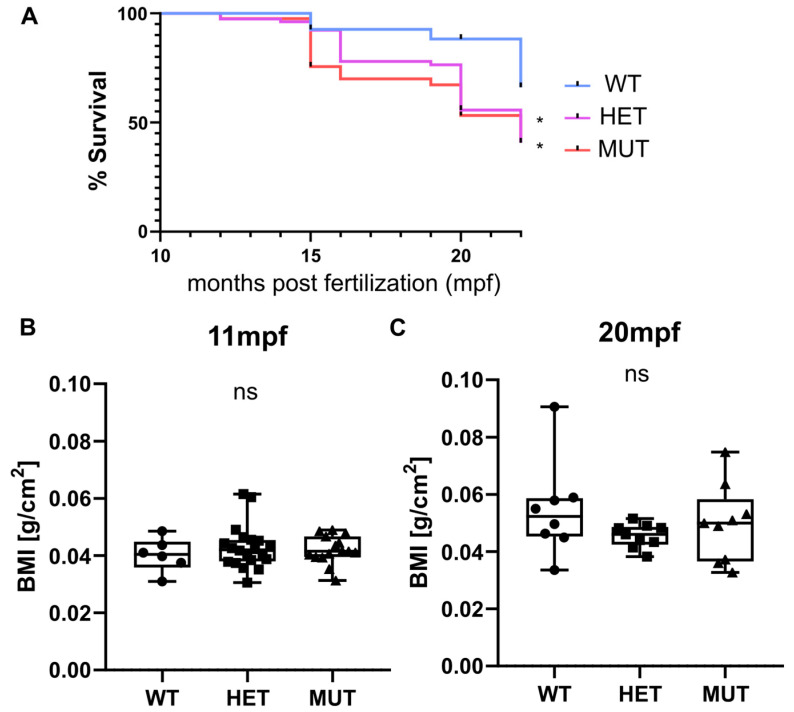

Figure 2

elna mutants have a shorter life expectancy. (A) Zebrafish survival from 3 independent clutches resulting from the crossing of heterozygous (elna ^sa12235/+) fish was recorded after genotyping, from 10–11 mpf to 15–22 mpf (WT = 27; HET = 78; MUT = 41 zebrafish). Survival curves were compared using the log-rank Mantel-Cox test and the Log-rank test for trend; * p < 0.05. (B,C) Weight and size of fish were measured at 11 and 20 mpf and expressed as a body mass index (BMI). Data were analyzed by Kruskal–Wallis test; ns = non-significant; mpf = months post fertilization; WT = wild type (elna^+/+); HET = heterozygous (elna ^sa12235/+); MUT = mutant (elna ^{sa12235/ sa12235}).

Figure Data

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Cells
