Figure 5

ID
ZDB-IMAGE-230629-16
Publication
Erickson et al., 2023 - Regionalized Protein Localization Domains in the Zebrafish Hair Cell Kinocilium
All Figures
Figures for Erickson et al., 2023
Figure Caption

Figure 5

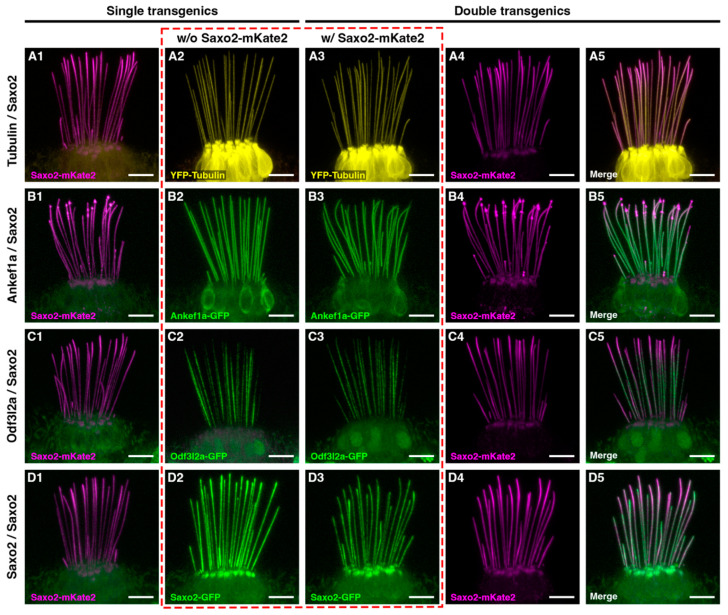

Co-expression of Saxo2-mKate2 with YFP-tubulin (A), Ankef1a-GFP (B), Odf3l2a-GFP (C), and Saxo2-GFP (D) at 5–6 dpf. Column 1 and 2 of each row shows single transgenic siblings, whereas columns 3 and 4 show individual channels from a double transgenic larva. Column 5 shows the merged channels from columns 3 and 4. The dashed red box compares YFP-TUBA, Ankef1a-GFP, Odf3l2a-GFP, and Saxo2-GFP localization without (A2–D2) or with (A3–D3) the presence of Saxo2-mKate2. Scale bars are 5 µm in all panels.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ J Dev Biol
