Fig. 4

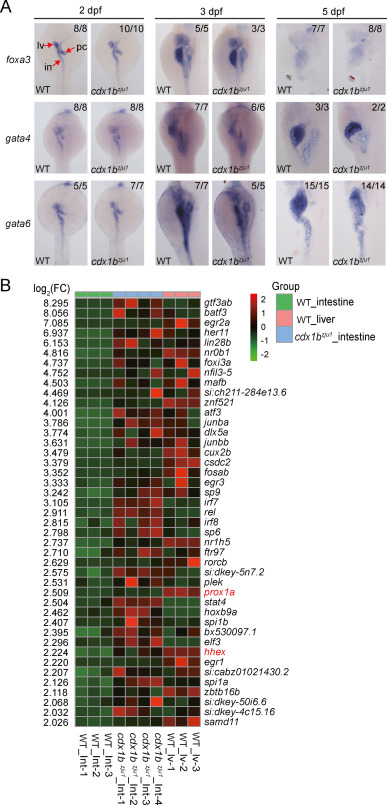

Fig. 4. Depletion of Cdx1b does not obviously affect the endoderm patterning. A: Patterning of the endoderm-derived organs was not visually altered in cdx1b^zju1^/zju1 at 2 dpf, 3 dpf, and 5 dpf as revealed by WISH using the pan-endodermal markers foxa3, gata4, and gata6 probes. B: Heatmap showing 43 TFs whose expressions were upregulated in 4 cdx1b^zju1/zju1 intestine samples (cdx1b^zju1/zju1-Int) compared with that in three WT intestine samples (wt_Int) (cut-off value: log₂[fold-change] > 2, P < 0.01). Heatmap also shows the expression of these TFs in three WT liver (WT_lv) at 5 dpf. RNA-seq data for three WT_Int and three WT_lv samples were adopted from our recently published report (Gao et al., 2022).
