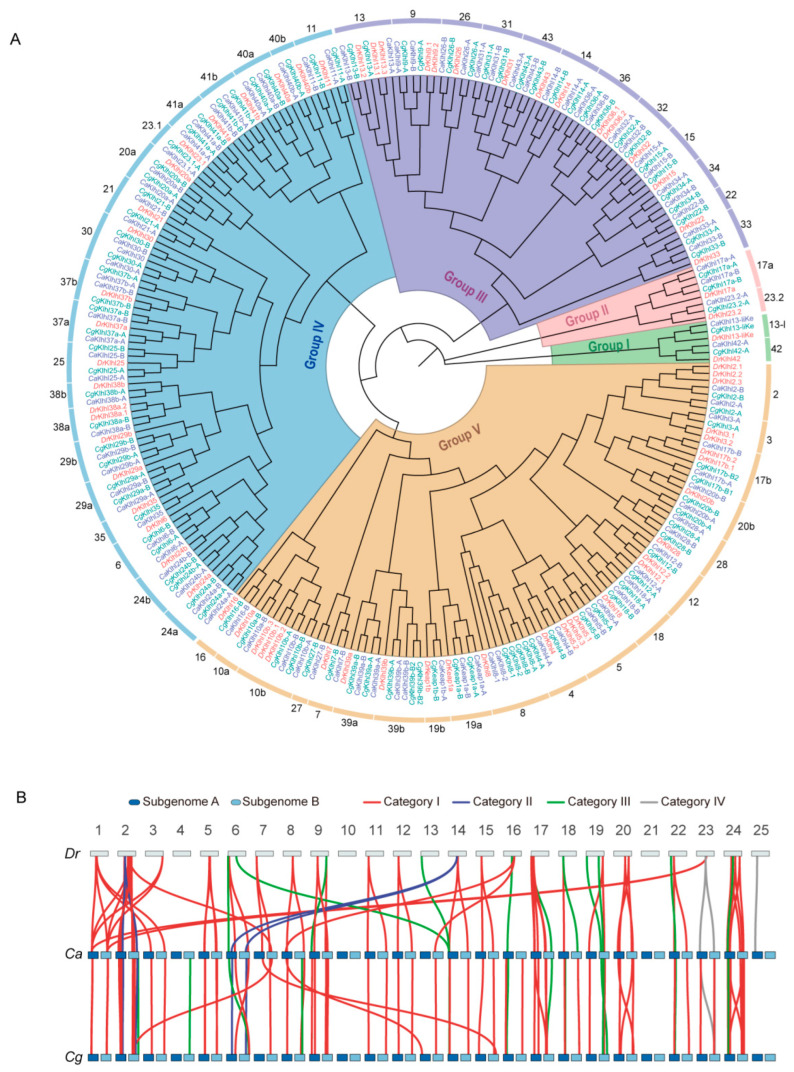

Phylogenetic and syntenic analyses of klhl gene families. (A) ML phylogenetic tree containing all Klhl members of D. rerio (Dr), C. auratus (Ca), and C. gibelio (Cg). (B) Synteny of klhl genes among D. rerio (Dr), C. auratus (Ca), and C. gibelio (Cg). Orthologous genes were classed into four categories and linked by different color lines.
