ZFIN Image: Yin et al., 2023, Figure 5


Figure Caption

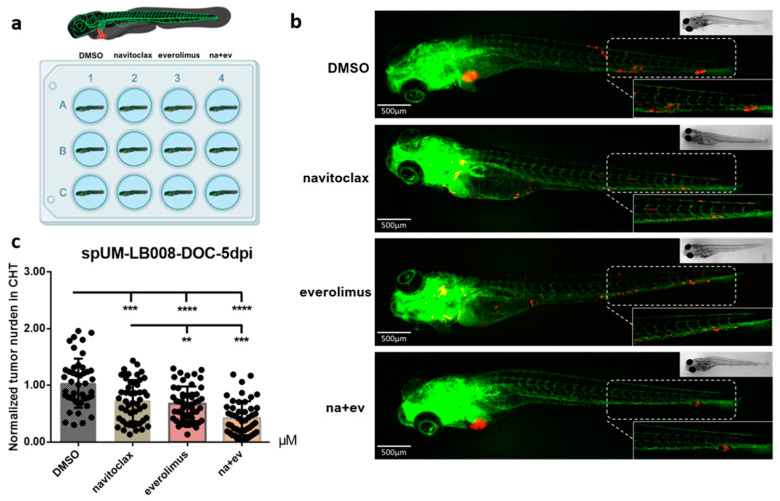

Figure 5

Navitoclax and everolimus and the combination of both chemotherapeutic agents reduced spUM-LB008 tumor burden in zf-PDX model. (a) The experimental layout of drug treatment in the UM zf-PDX model. (b) Representative phenotypes of zebrafish in the DMSO-control and drug treatment groups at 6 dpi (n = 3, p < 0.01). P values were indicated as follows: ** p < 0.01, *** p < 0.001, **** p < 0.0001. (c) Effect of navitoclax, everolimus, and their combination treatment on tumor burden, compared to the control group. The combination of navitoclax and everolimus reduced the tumor burden significantly compared to everolimus and navitoclax alone. The fluorescence intensity in CHT (white rectangle) of each individual zebrafish was measured as the metastasized tumor burden. The scale bar is 500 µm.
