Figure Caption
Fig. 5

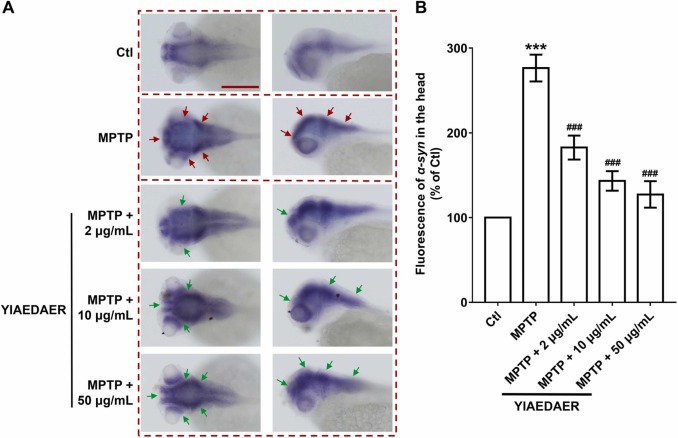

Fig. 5. The relieving effect of YIAEDAER on PD-like symptoms through regulating α-syn levels in zebrafish larvae. (A) The expression of α-syn in the CNS of zebrafish larval after treated with YIAEDAER. Red and green arrows indicate increased and decreased expression of α-syn, respectively. Scale bar, 200 µm. (B) Statistical analysis of the fluorescence of α-syn in different treatment groups (ratio to control, %) (n = 8). *** P < 0.001 vs Ctl; ###P < 0.001 vs MPTP.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Biomed. Pharmacother.
