Figure Caption
Figure 4

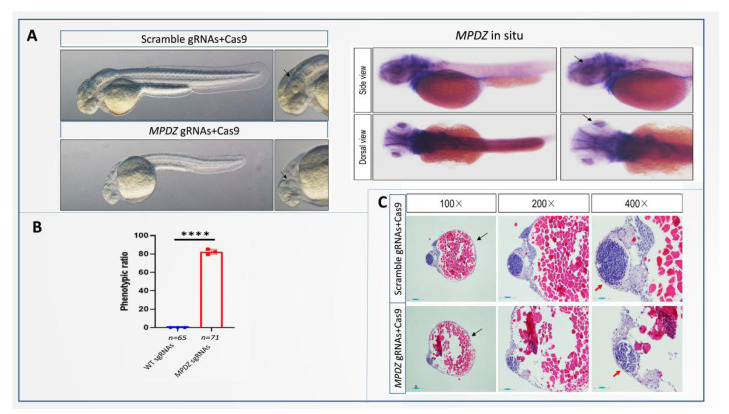

Experiment on zebrafish. (A) MPDZ crispant zebrafish displayed reduced eye area and body length compared to wildtype zebrafish. The phenotype of the MPDZ-knockdown crispants was more obvious compared to that of the wildtype. (B) Phenotypic ratio indicating the percentage of fish that uniformly showed reduced eye area and body length. The percentage of phenotypic positive fish in the MPDZ gRNA group (n = 71) was significantly greater than that in the WT gRNA group (n = 65) (p < 0.05). (C) Histological examination showing a series of phenotypes, including a small eye and a thin retina.
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Cells
