Figure Caption

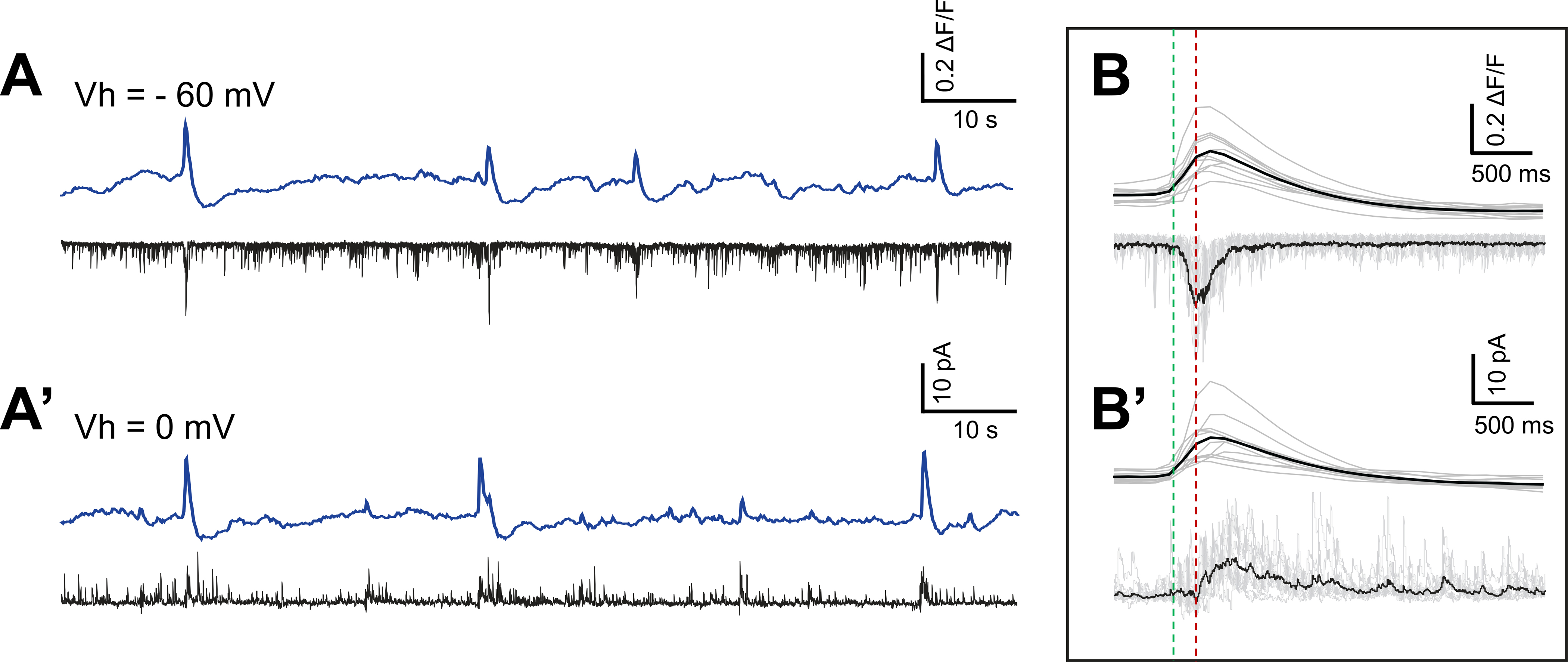

Fig. 4
Calcium bursts correspond to acetylcholine/glutamate and GABAergic currents
(A-A’) ΔF/F traces of dHb terminals (blue) aligned with simultaneous patch-clamp recording of IPN neurons (black) show correlation of calcium bursts with increase in glutamatergic/cholinergic inward currents (A, Vh = −60 mV) and GABAergic outward currents (A’, Vh = 0 mV).
(B-B’) Average traces (black) of calcium bursts (top) aligned with synaptic responses (bottom) at holding potentials of –60 mV (B, n = 4 explants, 42 events) and 0 mV (B’, n = 3 explants, 23 events). Dotted lines indicate onset for inward (green) and outward (red) currents.
