Figure 3

ID: ZDB-IMAGE-221211-162
Publication: Gao et al., 2022 - Kiaa1024L/Minar2 is essential for hearing by regulating cholesterol distribution in hair bundles
All Figures: Figures for Gao et al., 2022


Figure Caption

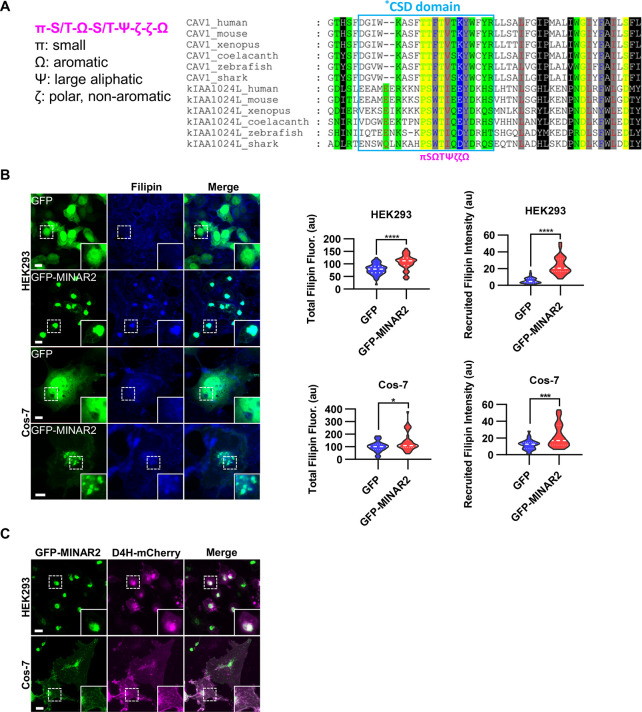

Figure 3 Minar2 increases cholesterol labeling and colocalizes with cholesterol in cultured cells. Minar2 increases cholesterol labeling and colocalizes with cholesterol in cultured cells.

(A) Protein sequence pattern search for Minar2 identifies caveolin. The conserved Minar2 sequence pattern is written in normalized symbols (Aasland et al., 2002; Livingstone and Barton, 1993). Sequence alignment is highlighted by the physico-chemical properties of the amino acids. *CSD: caveolin scaffolding domain. (B) Effects of Minar2 on levels and distributions of filipin labeling in cultured cells. Total filipin fluorescence indicates the sum of all pixel values of filipin signals. Recruited filipin represents the average pixel values of filipin signals located within the GFP-positive area. For HEK293 cells, n=51 and 58; for Cos-7 cells, n=28 and 35. au: arbitrary unit. (C) Distribution of GFP-MINAR2 and D4H-mCherry in cultured cells. Figure inserts show enlarged views of the boxed area. Scale bars represent 10 μm.
