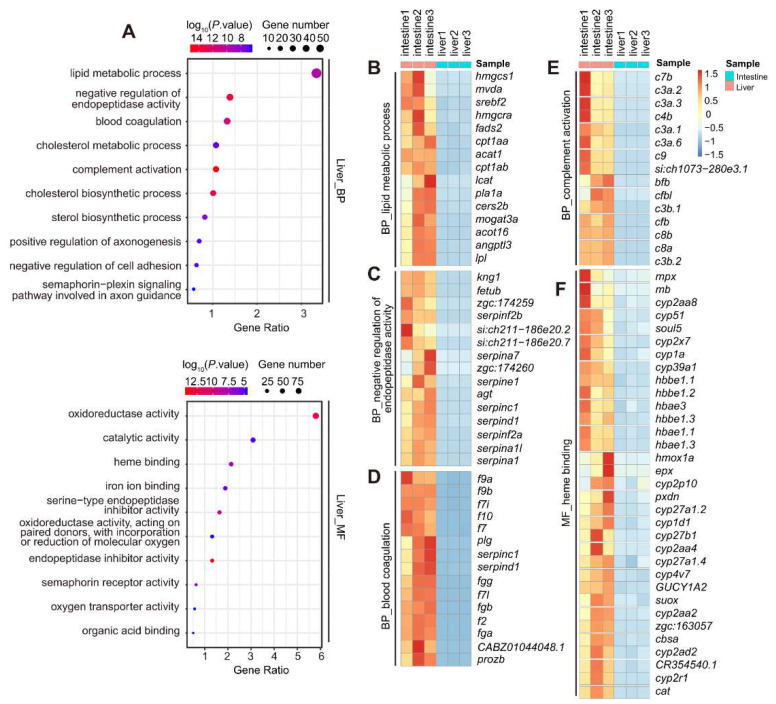

GO analysis of the 1637 liver-enriched DEGs identified at 5dpf. (A) GO analysis of the 1637 liver-enriched DEGs under the GO_BP (upper panel) and GO_MF (lower panel) terms. Top 10 categories are shown here. (B–F) Hierarchical clustering heatmap comparing representative genes in the categories of ‘lipid metabolic process’ (B), ‘negative regulation of endopeptidase activity’ (C), ‘blood coagulation’ (D) and ‘complement activity’ (E) under the GO_BP term and ‘heme/oxygen binding’ under the GO_MF term (F). These categories were among the top 10 under the GO_BP or GO_MF terms.
