ZFIN Image: Mahmoudi et al., 2017, Fig 3


Figure Caption

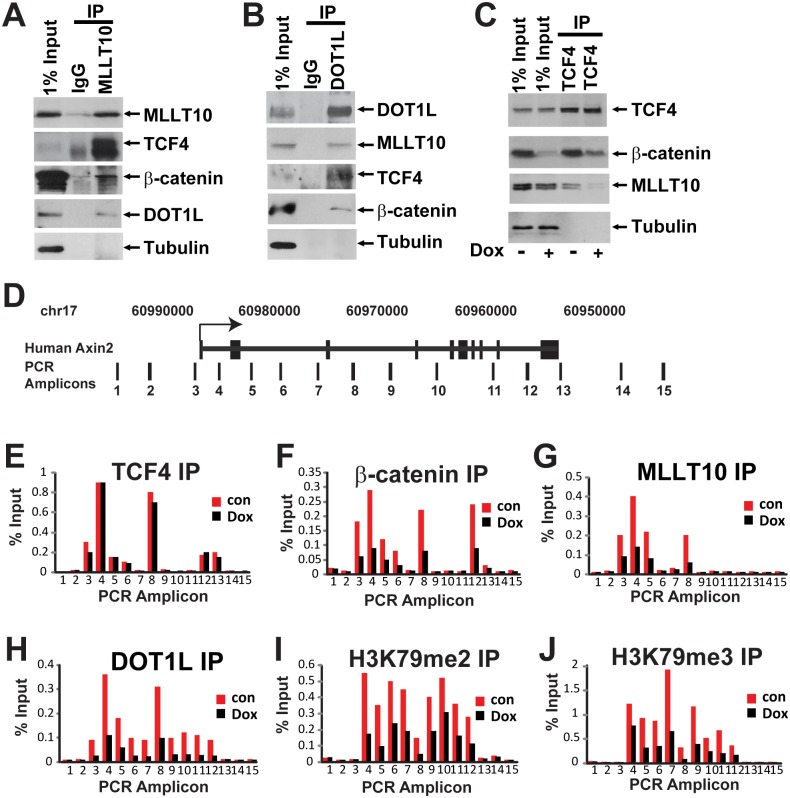

Fig 3 β-catenin-dependent H3K79 methylation and MLLT10/AF10, DOT1L recruitment to human <italic>AXIN2</italic> gene.

Cell lysates from Ls174T CRCs were immunoprecipitated with antibodies against endogenous MLLT10/AF10 (A) and DOT1L (B) complexes and analyzed by Western blotting with the indicated antibodies. (C) MLLT10/AF10 interaction with TCF4 is mediated by β-catenin. Western blot analysis of β-catenin depletion in Ls174T cells expressing doxycycline (Dox)-inducible β-catenin shRNA. Immunoprecipitated TCF4-protein complexes from untreated or Dox-treated cells were resolved by SDS-PAGE followed by Western blotting with the indicated antibodies. (D) Schematic representation of the human AXIN2 locus and amplicons scanned in Chromatin immunoprecipitation experiments by qPCR. ChIP in Ls174T CRCs uninduced or induced with Dox using antibodies specific for TCF4 (E), β-catenin (F), MLLT10/AF10 (G), DOT1L (H), H3K79 dimethyl (I), and H3K79 trimethyl (J). The immunoprecipitated DNA was analyzed by qPCR using primers specific for the AXIN2 locus as indicated. Results are presented as percent immunoprecipitated over input and are representative of three independent experiments.
