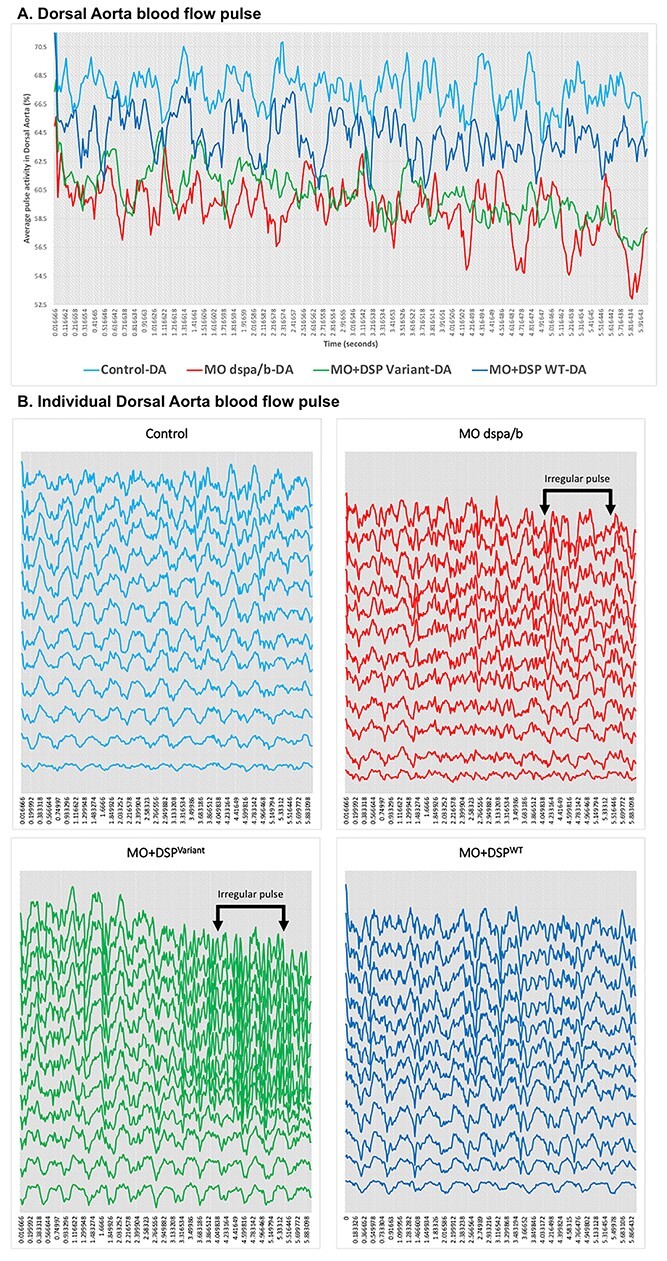

Zebrafish DSP model cardiac blood flow pulse in Dorsal Aorta. Modeling Qatar Genome Programme human DSP cardiac variant produced altered blood flow pulse in the dorsal aorta (DA) of the zebrafish model, representative charts at 72 hours post-fertilization (hpf): (A) Video recordings of high-speed acquisition of the blood flow (60 frames per second) were processed, a selected area of the DA with circulating red blood cells was used to calculate the cardiac blood flow pulse. A representative flow profiles chart for the analysis provides a color-coded pulse over time (6 s). (B) Representative individual pulse of analyzed data (n = 12 per group).
