ZFIN Image: Ding et al., 2022, Fig. 2


Figure Caption

Fig. 2

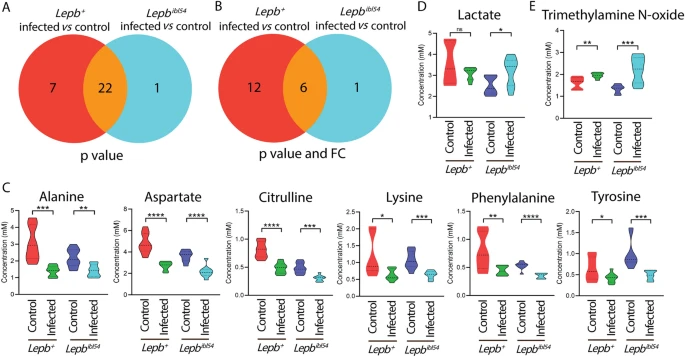

Venn diagrams show the number of metabolites measured by HR-MAS NMR spectroscopy in response to infection in the lepb⁺ and lepb^ibl54 zebrafish larvae. A A Venn diagram shows the number of metabolites in response to M. marinum infection in the lepb⁺ and lepb^ibl54 larvae with p < 0.05. B A Venn diagram shows the number of metabolites in response to M. marinum infection in the lepb⁺ and lepb^ibl54 larvae with p < 0.05 and FC > 1.5 or FC < − 1.5. FC fold change. C Quantification of the common six metabolites in B. ****p < 0.0001. D Quantification of the one metabolite lactate in A. *p < 0.05. ns non-significant. E Quantification of the one metabolite trimethylamine N-oxide in B. **p < 0.01, ***p < 0.001
