Figure Caption
Fig. 6

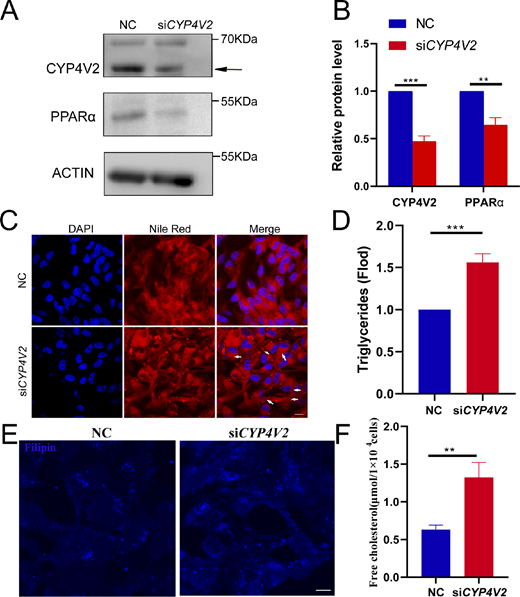

Knockdown of CYP4V2 increases LDs and free cholesterol accumulation in human RPE-1 cells. (A) Analysis of CYP4V2 and PPARα protein levels in negative control (NC) and siCYP4V2 RPE-1 cells by Western blotting. (B) Quantitative analysis of the Western blot data. At least three independent experiments were performed and quantified. The results are shown as mean ± SD. **P < 0.01. (C) Increased LDs in siCYP4V2 RPE-1 cells as revealed by Nile red staining. Scale bar: 10 µm. (D) Measurement of triglyceride concentrations in NC and siCYP4V2 RPE-1 cells. (E) Filipin staining in NC and siCYP4V2 RPE-1 cells. Scale bar, 10 µm. (F) Free cholesterol concentration in NC and siCYP4V2 RPE-1 cells. The results are shown as mean ± SD. ***P < 0.001; **P < 0.01.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Invest. Ophthalmol. Vis. Sci.
