Figure Caption

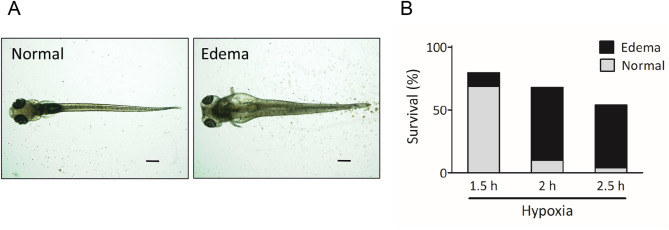

Fig. 1 Hypoxia using oxygen absorber induced trunk and head edema and decreased survival rate. (A) After 4 dpf zebrafish larvae were exposed to hypoxia using the oxygen absorber, they were maintained in normoxic E3 medium for 24 h, and subsequently observed. The photographs show representative images of normal and abnormal larvae, depicting edema in the trunk and head. Scale bar = 300 μm. (B) Hypoxic exposure decreased survival rate in a time dependent manner. n = 45–50.
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ J. Pharmacol. Sci.
