ZFIN Image: Manuelli et al., 2022, Fig. 2


Figure Caption

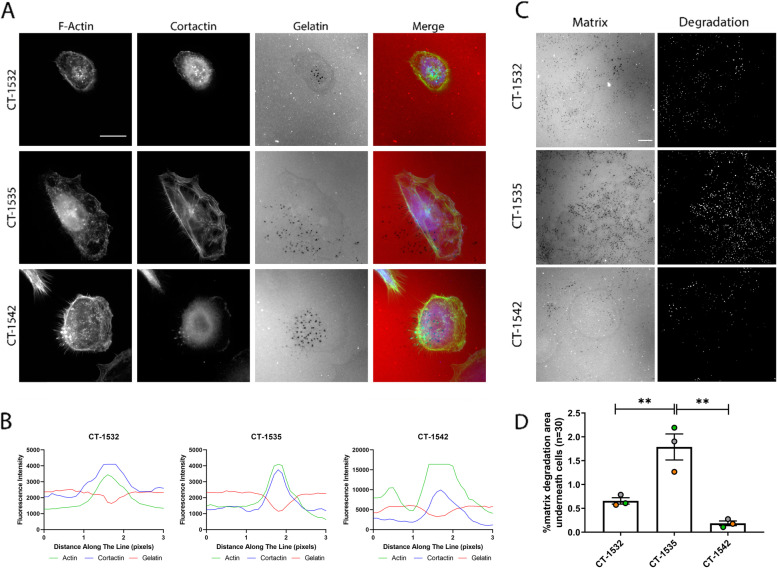

Fig. 2

Primary prostate adenocarcinoma cell lines form invadopodia. A Cells were seeded on Cy3-conjugated gelatin for 24 h and stained for F-actin and Cortactin. B co-localisation of cortactin, F-actin and gelatin degradation. C Gelatin degradation. D percentage of degraded area underneath total cell area. n = 90 cells. All Data presented represent 3 independent experiments, mean ± S.E.M. Significance was calculated with One-way Anova followed by Tukey’s multiple comparisons test, **p < 0.005. Scale bar = 10 μm

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ BMC Cancer
