Figure 1.

ID: ZDB-IMAGE-211216-58
Publication: Alejevski et al., 2021 - Conserved role of the urotensin II receptor 4 signalling pathway to control body straightness in a tetrapod
All Figures: Figures for Alejevski et al., 2021


Figure Caption

Figure 1.

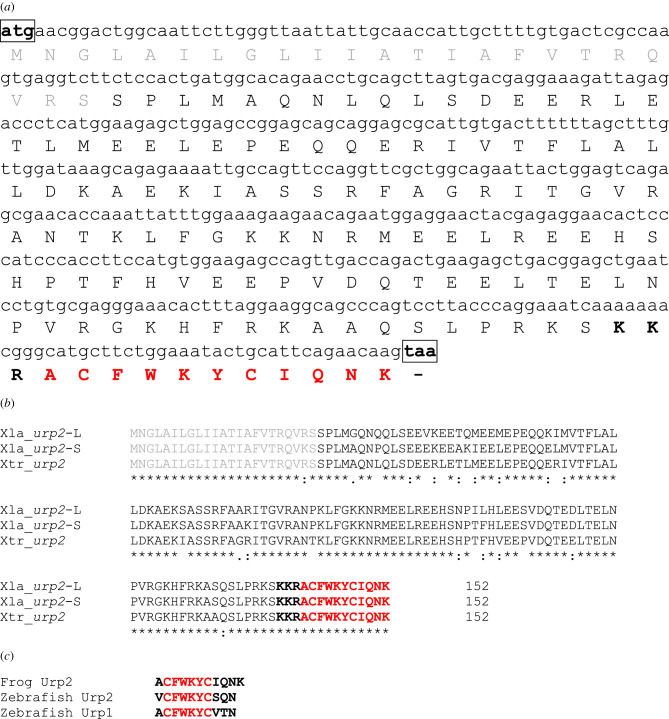

Primary structure of frog Urp2 precursors. (a) Nucleotide sequence of the X. tropicalis urp2 cDNA and deduced amino acid sequence. (b) Alignment of the aa sequences of X. tropicalis and X. laevis prepro-Urp2. An asterisk denotes conserved residues. Precursor sizes are indicated. Xtr, X. tropicalis; Xla, X. laevis. (c) Comparison of Urp2 and Urp1 primary sequences in Xenopus and zebrafish. Initiation (ATG) and stop codons are boxed. Signal peptides are in grey. Putative bioactive peptides are highlighted in red. Cleavage sites are in bold. The sequences of the two X. laevis Urp2 cDNAs have been deposited in the GenBank database under the accession number MZ054702 and MZ054703, respectively.
