Figure Caption

Fig. 3

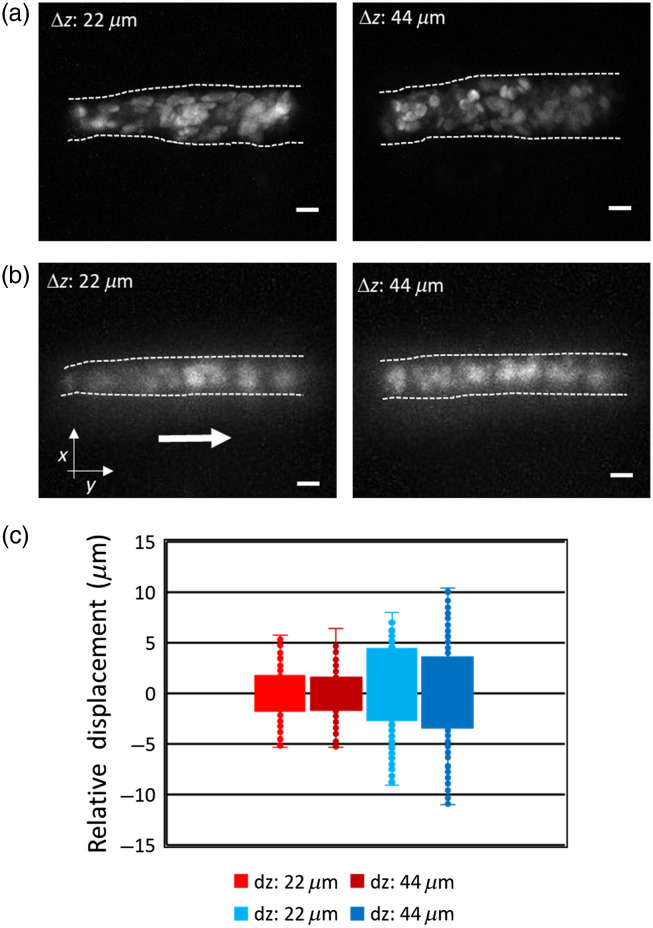

The maximum intensity projection of a volume image (10 slices) of RBCs in Tg(fli1a:EGFP; gata1:DsRed) zebrafish larva over two volume thicknesses using 2p LSFM (a) without and (b) with axicon imaging. (c) Boxplot of RBCs displacement in x axis using 2p LSFM with (red and dark red) and without (blue and dark blue) axicon imaging over 22 μm (red and blue) and 44 μm (dark red and dark blue) volume thickness, respectively. Arrow indicates the blood flow in the y direction. Scale bar: 10 μm.
