Fig. 7

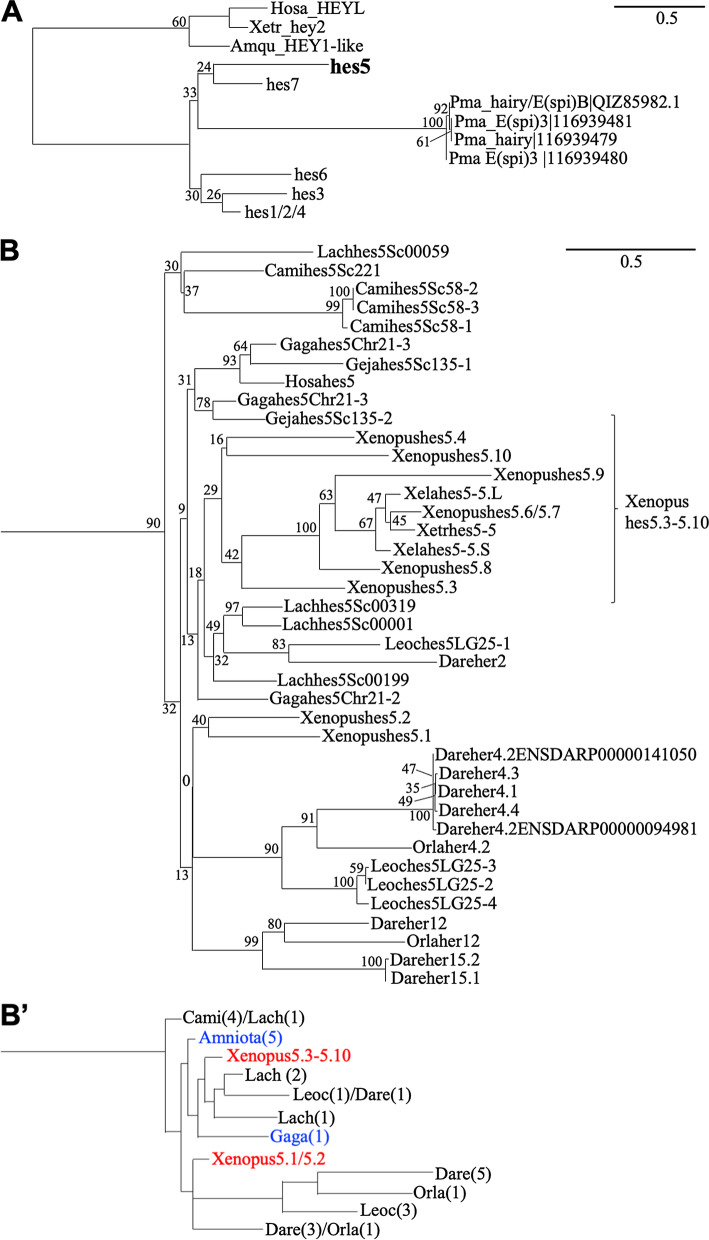

Comprehensive phylogenetic analysis of hes genes except for hes5 (A) and hes5 genes (B) in jawed vertebrate. Evolutionary analysis was conducted in RAxML. Human HEYL, X.tropicalis hey2 and sponge (Amphimedon queenslandica) HEY1-like gene sequences were used as an outgroup. The outline of B is described in B’. Hosa, human; Mumu, Mouse; Gaga, Chicken; Geja, Japanese gecko; Xetr, Xenopus tropicalis; Lach, Coelacanth; Dare, zebrafish; Orla, medaka; Leoc, spotted gar; Cami, elephant shark; Amqu, sponge
